Felder KF700S
EUROPE (Western and Northern)

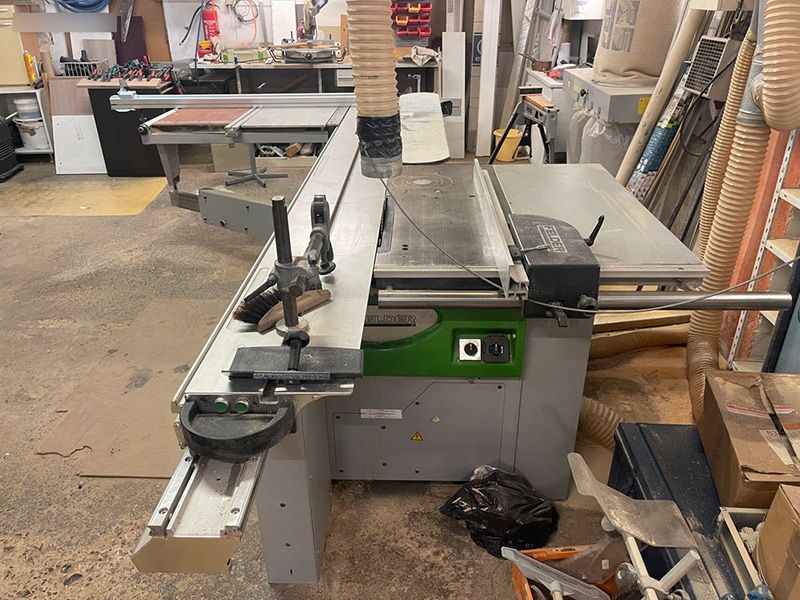

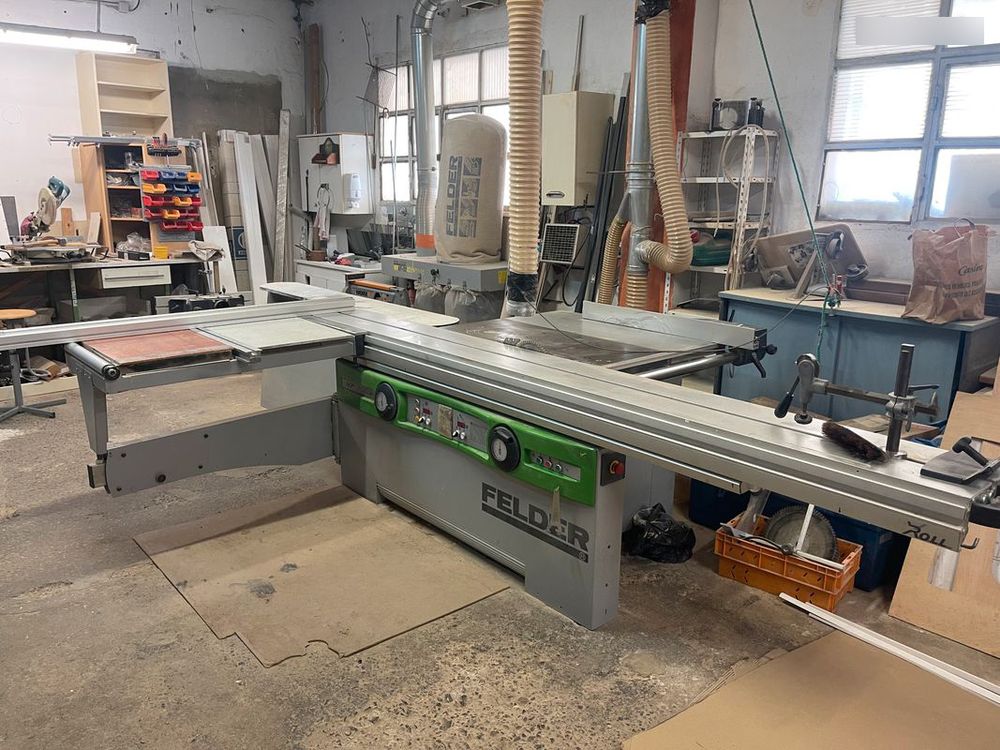

Professional machining center, a high-end combination machine designed for professionals in woodworking, joinery, and cabinetmaking.
This machine is renowned for its robustness, precision, and reliability.
It is sold with its Felder AF22 dust extraction system.
Machine Equipment:
Panel circular saw with close-coupled sliding table
Integrated spindle moulder with tilting spindle
Precision parallel guide
Heavy-duty cast iron table
High-precision Felder X-Roll sliding table
Quick tool change
Precise adjustments and professional working comfort
KF700S Technical Specifications:
Power Supply: Three-phase 400V
Motor Power: 4 kW / 5.5 HP (depending on configuration)
Optional Standard Power: 5.5 kW or 7.3 kW
Blade Tilt: 90° to 45°
Max. Cutting Height: 104 mm
Max. Blade Diameter: 315 mm
Blade Speed: 4800 rpm
Slider Cutting Length: 2500 to 3200 mm (depending on version)
Parallel Guide Cutting Width: 800 to 1250 mm
Spindle moulder table opening: 230 mm
Max. Spindle moulder tool diameter Under hood: 230 mm
Approximate weight: 710 kg

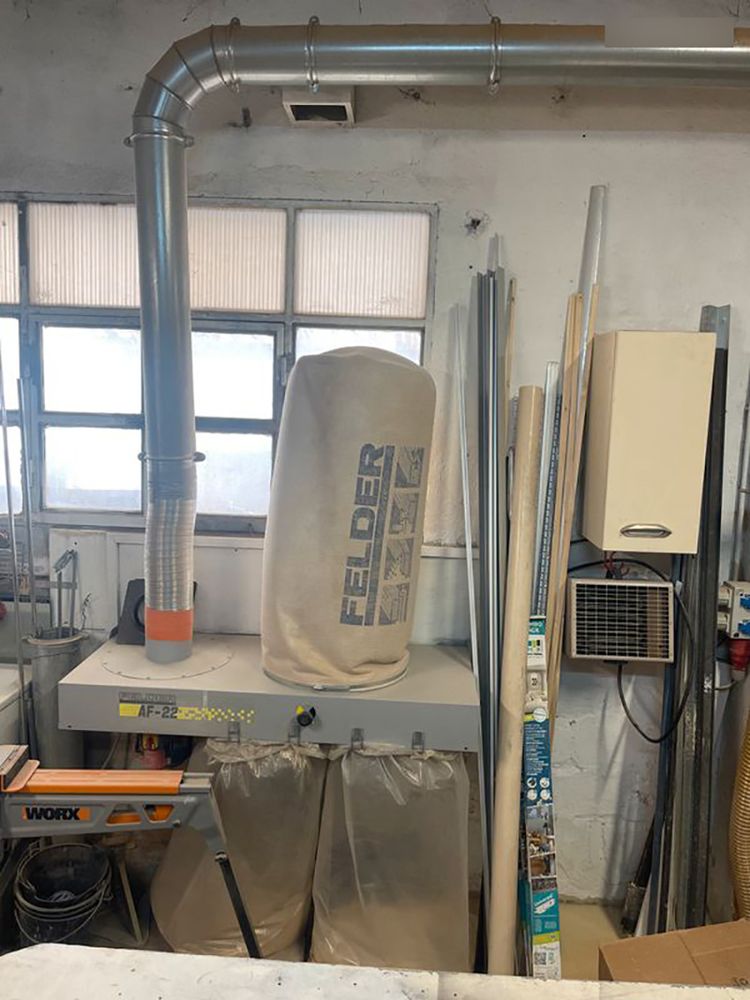

Felder AF22 dust extraction unit:
Motor power: 3 kW / 4 hp
Power supply: 400V three-phase
Air flow: 3100 m3/h
Maximum vacuum: 2510 Pa
Shred bag capacity: 2 x 200 liters
Dimensions: 1300 x 580 x 2150 mm
Dust extraction connection: Ø120 + Ø80 mm
Condition: Machine well-maintained and in perfect working order. Ready to operate.
