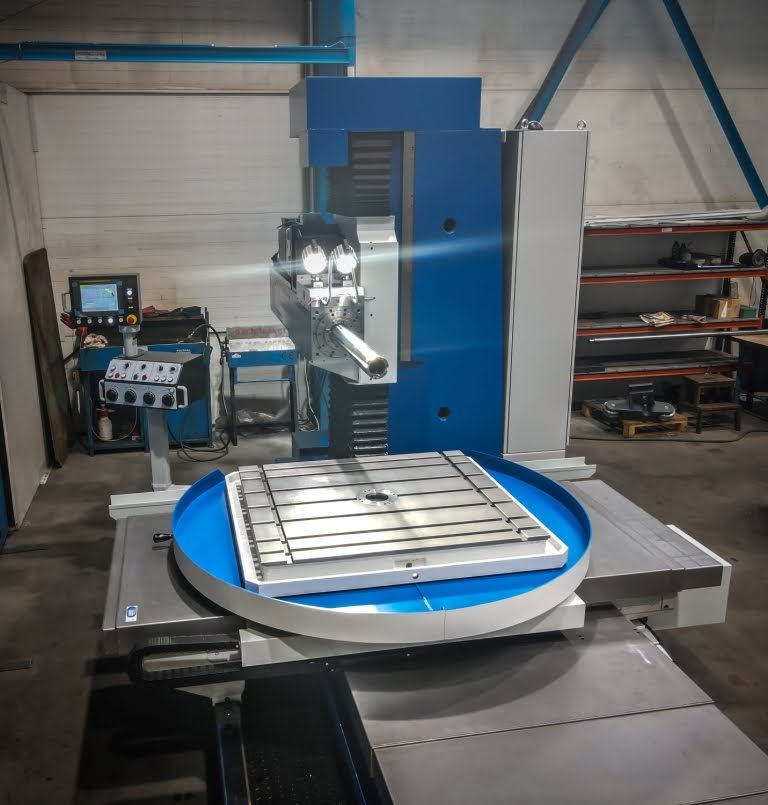

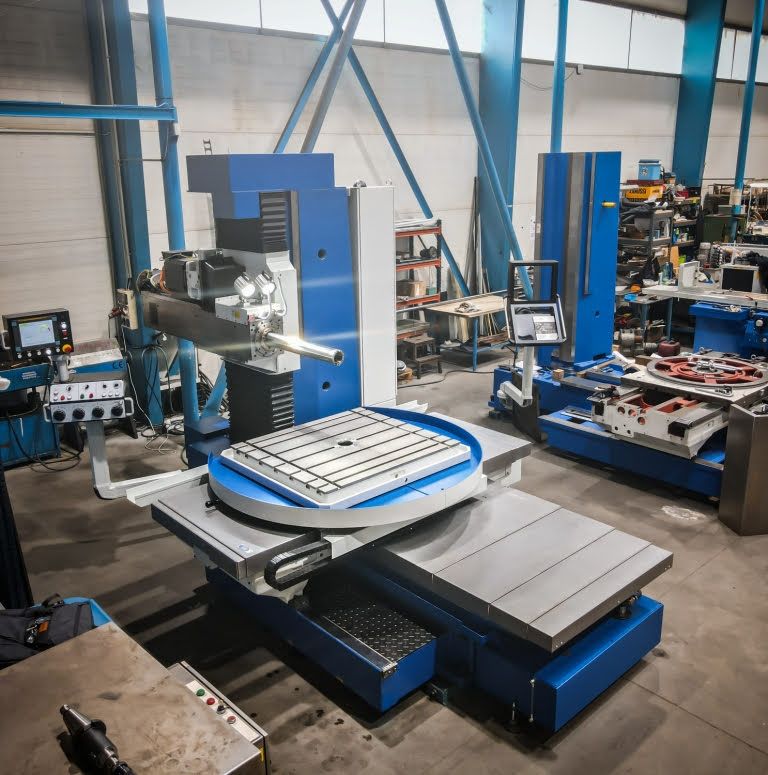

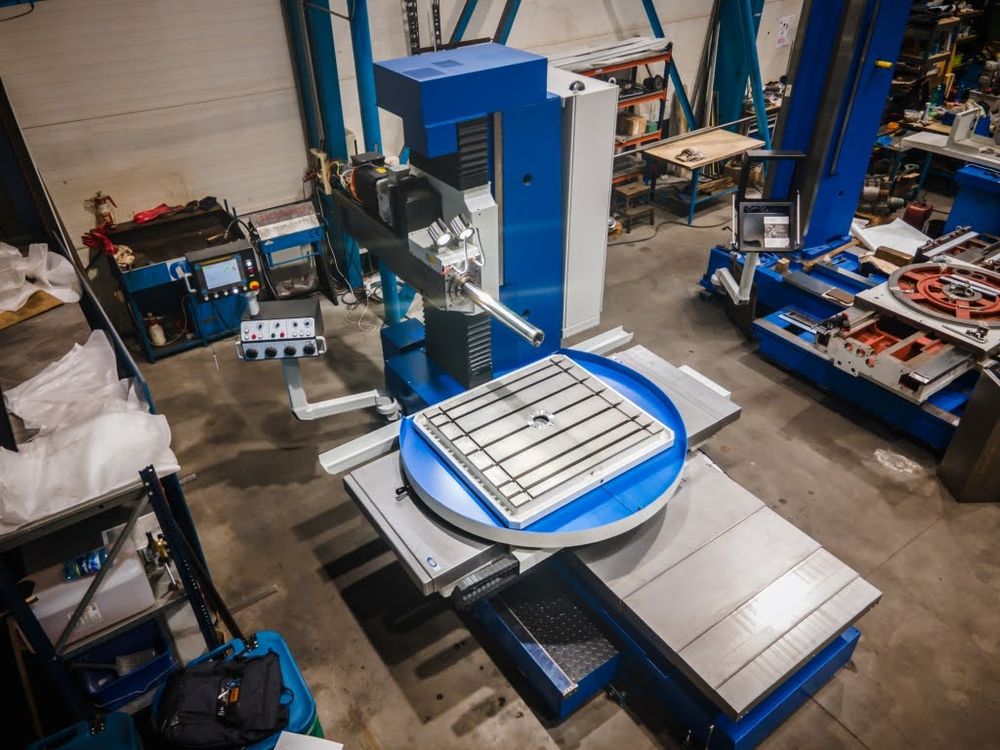

Fermat CraftMill 10 100mm
EUROPE (Central and Eastern)
Year: 2026

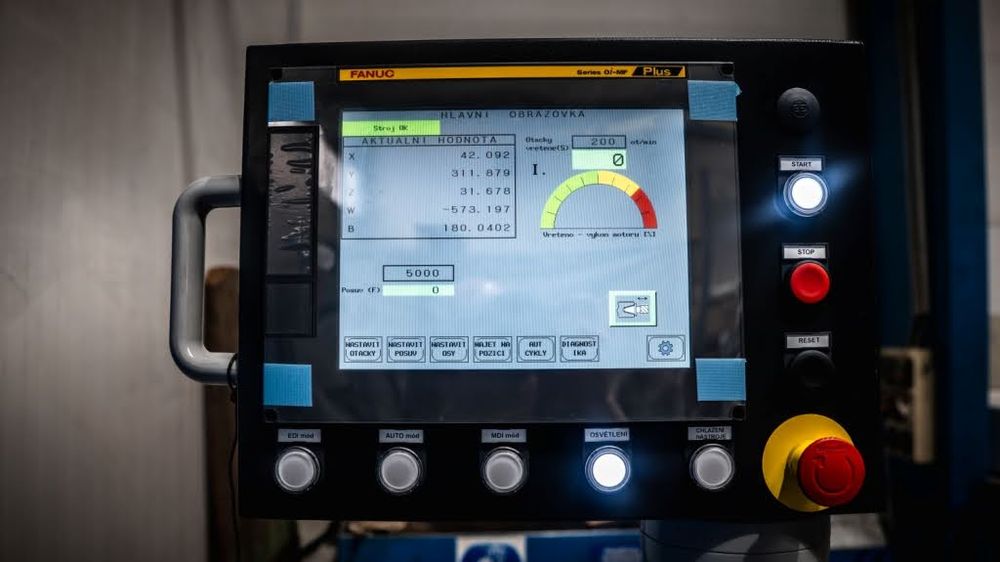

Control system Fanuc
Diameter of working spindle 100 mm
Travel X-axis 1270 mm
Travel Y-axis 910 mm
Spindle speed 0 - 2000 /min.
Cooling through spindle NO
Spindle travel - W axis 730 mm
Travel Z-axis 900 mm
Tool magazine NO
Spindle taper ISO 50 .
Max. load of table 3000 kg

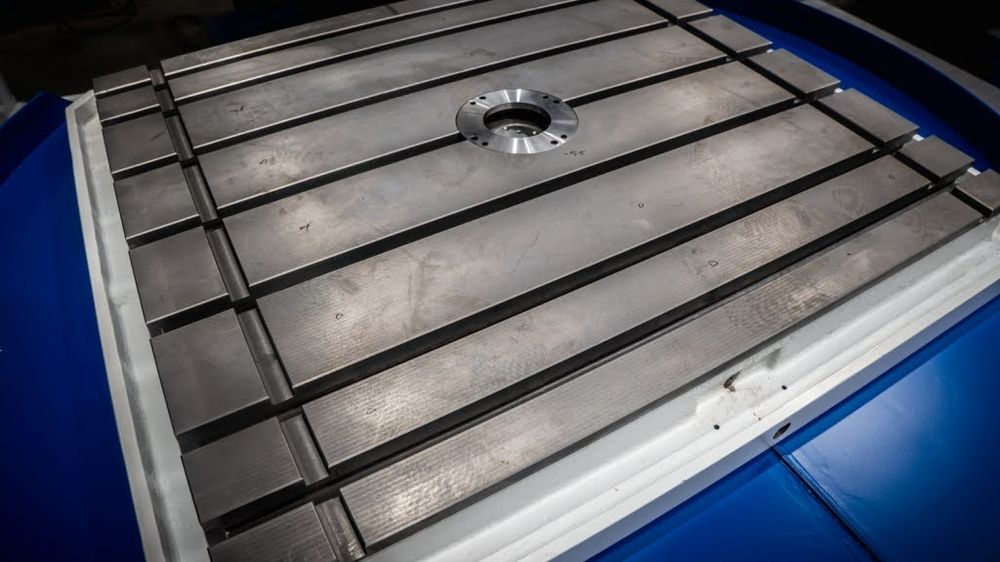

Clamping area of rotary table 1000x1120 mm
Machine weight 11500 kg
Machine dimensions l x w x h 5000 x 3000 x 2800 mm
Main motor power 18,5 kW
Total input 31 kVA

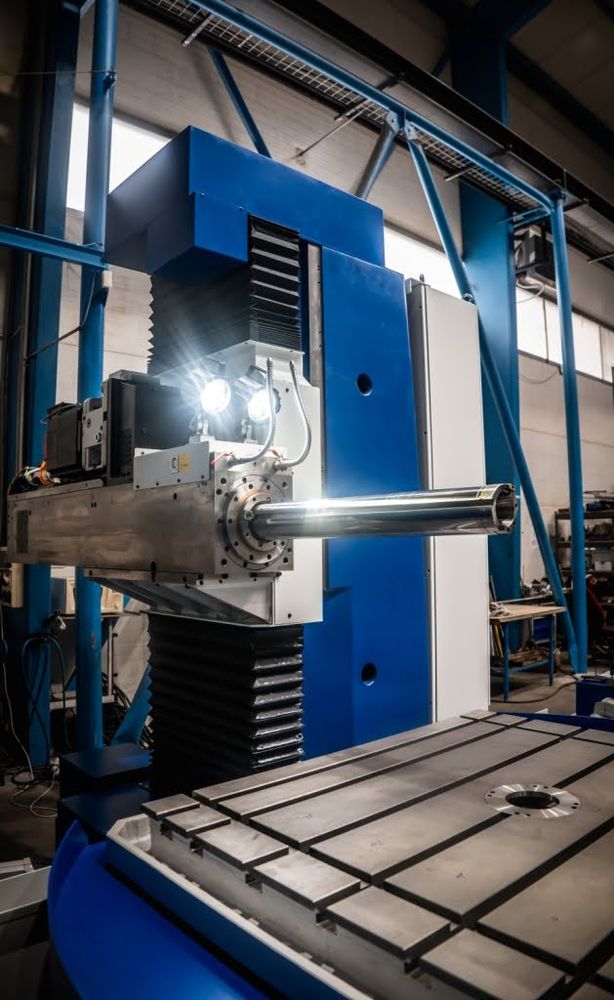

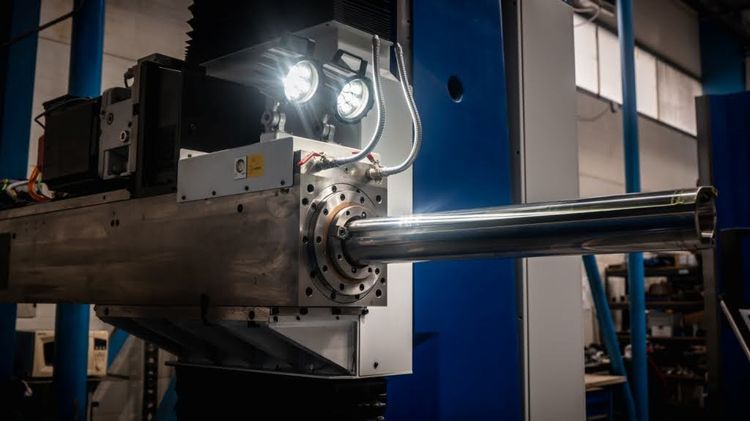

spindle: 2000 rpm, stepless regulation, ISO50, diameter 100mm

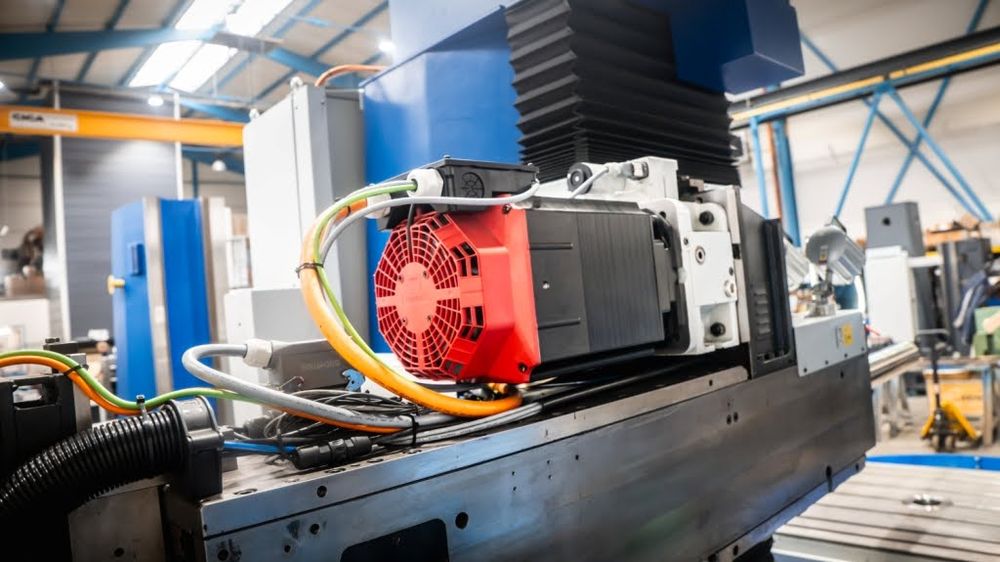

spindle motor: Fanuc ALPHAiL22, 22kW
measurement: Fanuc from the engine
sliding motors: Fanuc BETA iSc
external tool cooling: 4 bar
X/Z cover: YES, telescopic Kabelchlepp
Y cover: YES, bellows

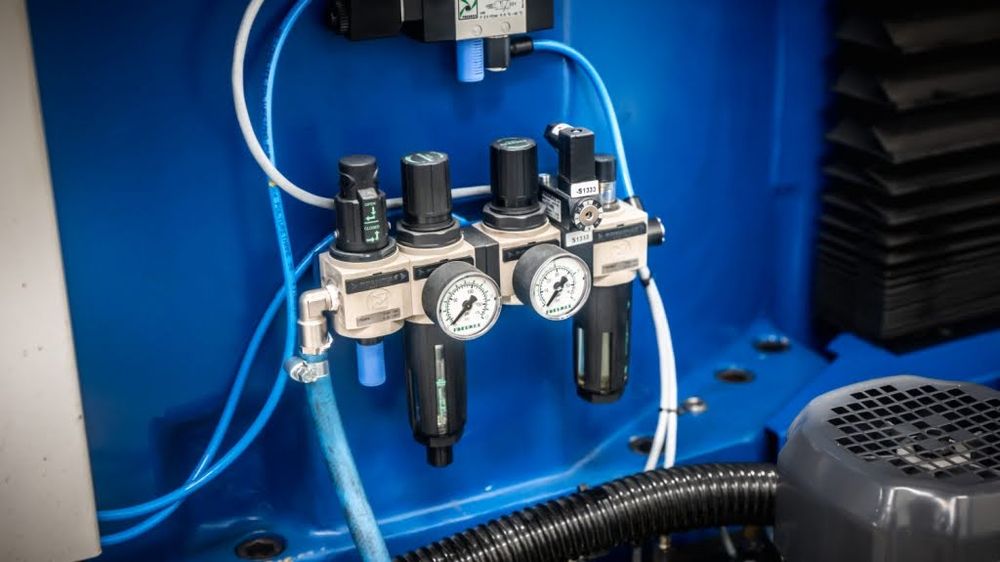

work air pressure: 6-7 bar
