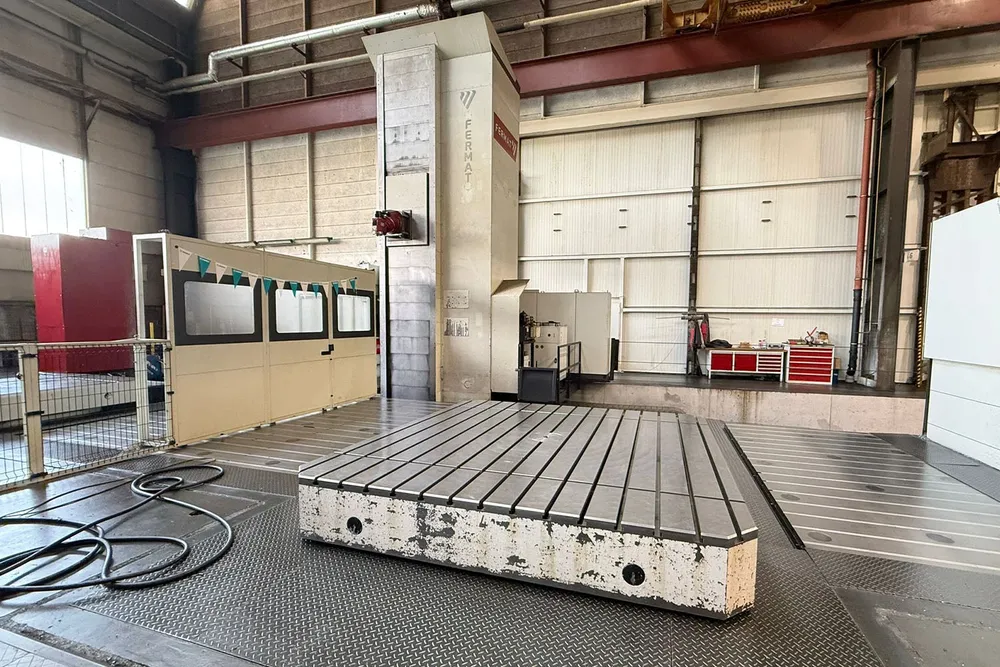

Fermat WRF Mill 5000 rpm

Column-Type Milling Machine
X Travel (Longitudinal): 14100 mm
Y Travel (Vertical): 5000 mm
Z Travel (Ram): 1550 mm
Spindle Power: 51/36 kW (40% / 100%)
Spindle Torque: 1500 Nm
Spindle Speed: 5000 rpm
Spindle Taper: ISO 50
C-Axis: 0.001° continuous
Ram Size: 420 × 420 mm
Heidenhain iTNC640 Control
Automatic Head Pickup Station (3 positions)

Head 1: Uhami 30 continuous A and C axis ±180°
Head 2: Uhami 30 continuous A and C axis ±180° (2022)
Head 3: Horizontal spindle extension 400 mm
Head 4: Horizontal spindle extension 800 mm
Head 5: ISO40 vertical head for horizontal extension

Table 1 Size: 3000 × 3000 mm
Table 1 Vertical Travel: 2400 mm
Table 1 Load Capacity: 50 tonnes

Table 2 Size: 2500 × 2000 mm
Table 2 Vertical Travel: 2400 mm
Table 2 Load Capacity: 30 tonnes

Toolchanger: Robot type
Spindle Through Coolant
Chip Conveyor
3D Probe
Movable Operator Platform
Wireless Handwheel
Working Area Separation
Floorplates: 2 pcs 4000 × 2000 mm
Floorplates: 2 pcs 5000 × 2000 mm
Approx. Programming Hours: 14000
Continuous Heads
Continuous Tables
CE Marking
