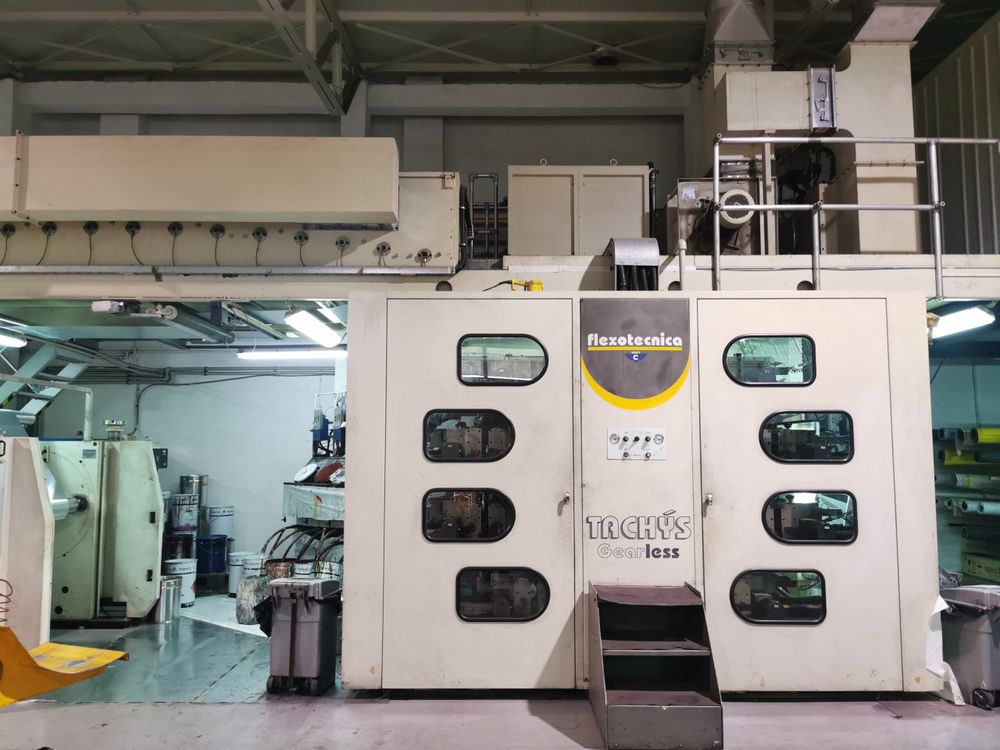

Flexotecnica TACHYS – G 8 1110 mm

1.04 Colors (nr) and Type 8 Colors
1.05 Gearless Si
1.06 Print width (mm) 1110 mm
1.07 Material passage (mm) 1150 mm
1.08 Print development min. – max. (mm) 310 - 750 mm
1.09 Mechanical speed (m/min) 300
1.10 Material type (kg) Paper and plastic films
Electrical power: 3 x 400 V, 50 Hz.
Air pressure: 6 bar
1.13 Inks Solvent base
1.14 Doctor blade groups: quantity N° 8
1.15 Washing of printing units semi automatic
1.16 Type of unwinder Automatic, expandable shafts 76-152 mm
1.17 Max. diameter on unwinder (mm) 800
1.18 Winder type Automatic, expandable shafts 76-152 mm
1.19 Max. diameter on winder (mm) 800
1.20 Heating Gas burners
1.21 Video camera Yes
1.22 Availability Immediate
1.23 Further information N°240 printed sleeves
