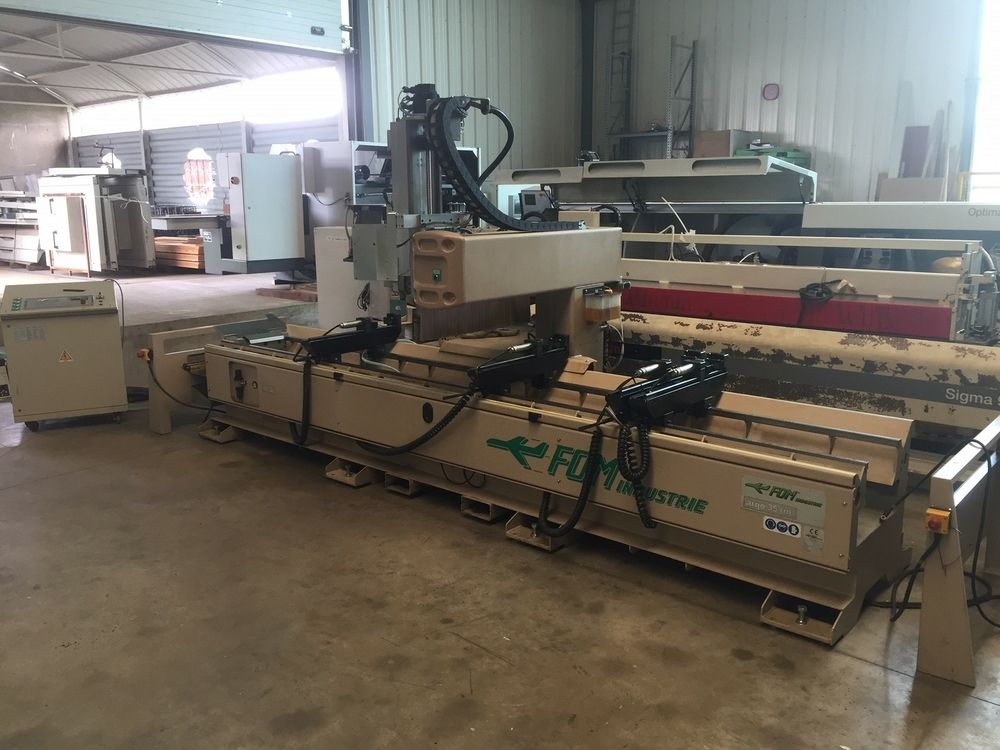

FOM ARGO 35 RM 3 Axis

Aluminum machining center CNC 3 axes
Works with IDRACAM software
X axis, travel 3550 mm
Y axis, travel 1100 mm
Z axis, travel 425 mm
Electric spindle rotation: 0°/90°/180°

Working capacity:
X axis = 3500 mm
Y axis = 540 mm with electric spindle in vertical position at 90°
Y axis = 460 mm with electric spindle in horizontal position at 0° or 180°
Z axis = 300 mm with electric spindle in vertical position at 90°
Z axis = 250 mm with electric spindle in horizontal position at 0° or 180°

Axis travel:
X axis: 80 m/min, acceleration 2.8 m/s
Y axis: 25 m/min, acceleration 2.8 m/s
Z axis : 25 m/min, acceleration 2.8 m/s

Spindle: ISO 30
DIN 69871
Power: 4 kW
Rotation speed: 12,000 rpm

Magazine with 6 accommodating tools
Tool change time: 8 seconds
Maximum tool weight: 5 kg
Maximum tool diameter: 220 mm
Operating pressure: 7 bar
Used machine conforming to CE standards
