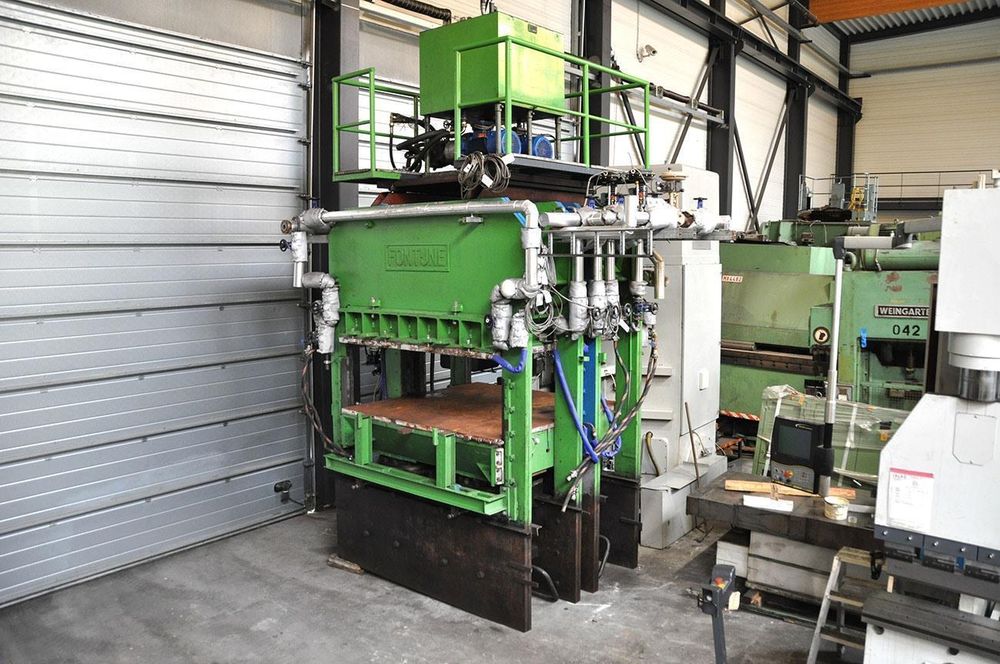

Fontijne Fontijne 2000 ton heated

Press force 2000 ton
Passage between uprights 2020 mm
Ram adjustment max. 550 mm
Table area 2000 × 2000 mm
Weight 35 ton
Columns 6
Hydraulic pistons 4 up stroke
Piston diameter 450 mm
Stroke 550 mm
Max opening without heated tables 780 mm
Max opening with heated tables 655 mm
Heated tables with steam or oil
Max temperature 300 °C
Table surface area 2000 × 2000 mm
Two tables 2000 × 1000 mm (can work together or separately)
Hydraulic power 2 × 11 kW
Feed-in roll table 4260 × 1550 × 1250 mm
Oil tank on platform 2000 × 2000 × 2500 mm
Total height of press 3600 mm
Press sits 920 mm in ground
Working height 750 mm
Applications composite material
Applications vulcanizing
Applications bending/straightening
