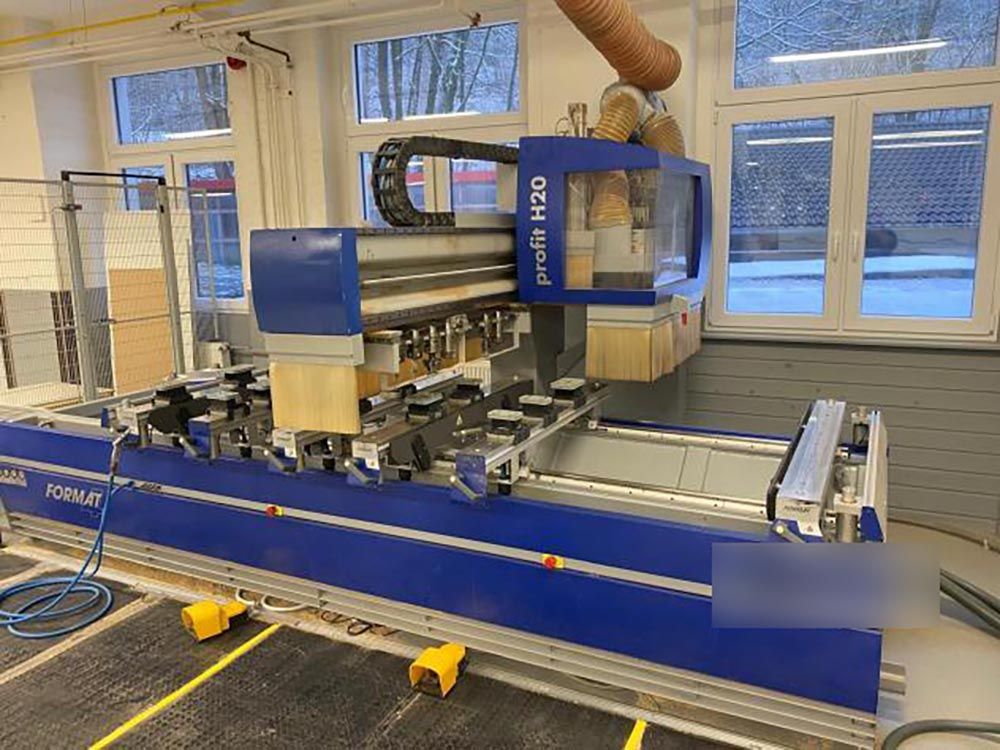

Format PROFIT H20

Features:
- Linear changer with 8 seats, on board
- Side-mounted Pick-up station for 2 tools
- Traveling pick-up station for HSK F63 unit/tool
- 14 vertical drilling spindles (9 in the X direction and 5 in the Y direction)
- 6 horizontal drilling spindles (4 in the X direction and 2 in the Y direction)
- 1 grooving saw (4-10 mm) arranged in the X-axis
- 1 HSK F-63 main spindle, 9 kW, 0-24,000 rpm
- Preparation for 0-360° C-axis
- 6 consoles for vacuum clamps
- Traveling laser for vacuum cup positioning
- 2 machining areas for pendulum loading
- Hand terminal
- Automatic central lubrication
- Working dimensions X/Y/Z: 3,060/1,210*/100 mm
- Travel X/Y/Z: 3,550/1,680/275 mm
- X/Y/Z speed: 80/80/25 m/min
*1,260 rear stop row
- Installation dimensions LxWxH: 5,900 x 4,020 x 2,340 mm
- Extractor nozzle diameter 200 mm
- Weight approx. 3,350 kg
