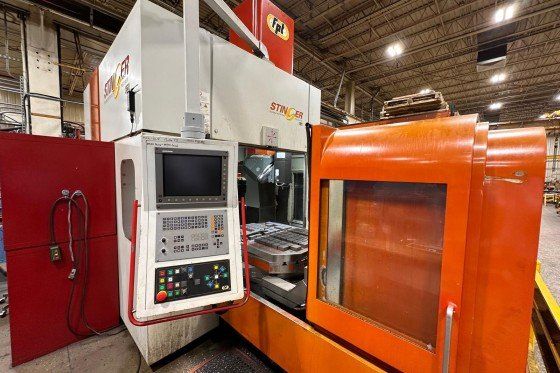

FPT STINGER 18000 rpm
EUROPE (Western and Northern)
FPT STINGER
2004
X travel: 1750 mm
Y travel: 1400 mm
Z travel: 600 mm
Table length: 1200 mm
Table width: 1000 mm
Table load capacity: 5000 kg
X-axis feed rate: 35000 mm/min
Y-axis feed rate: 35000 mm/min
Z-axis feed rate: 35000 mm/min
Spindle taper: HSK 63 ISO/BT/MK
Spindle power: 25 kW
Spindle speed: 18000 rpm
Tool changer capacity: 30 tools
Coolant through spindle: 20 bar
Controlled axes: 5
Machine length: 6000 mm
Machine width: 4000 mm
Machine height: 3850 mm
Machine weight: 21000 kg
Equipped with
Heidenhain iTNC530 control
Chip conveyor
Laser tool setter
Portal handwheel
Full A/B automatic head
High-pressure coolant system
Coolant system
