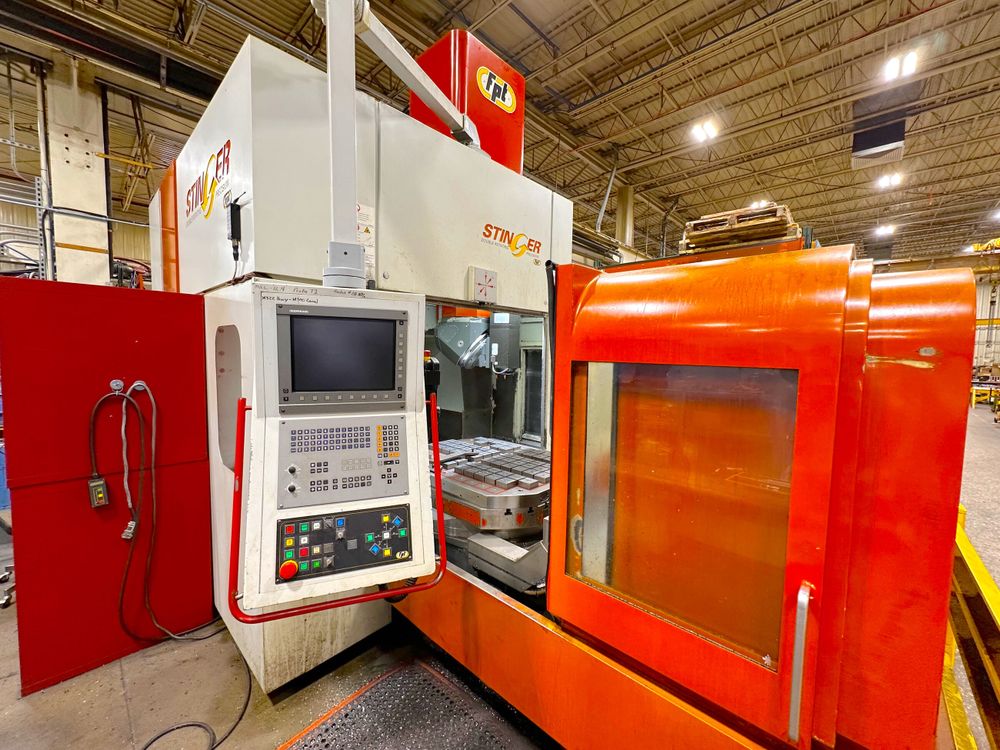

FPT STINGER 5 Axis

X-axis travel: 1,750 mm
Y-axis travel: 1,400 mm
Z-axis travel: 600 mm
A-axis: Continuous, 0.001°
B-axis: Continuous, 0.001°
Rapid traverse X: 35 m/min
Rapid traverse Y: 35 m/min
Rapid traverse Z: 35 m/min
Axis acceleration: 6 m/s2
Heidenhain iTNC530 CNC control
Siemens drives
Workpiece touch probe: M&H
Laser tool presetter: Marposs
Through-spindle coolant: 60 bar
High-pressure coolant: 60 bar
Swing capacity: 1,300 mm
Distance between columns: 1,430 mm
Spindle speed: 18,000 rpm
Spindle power: 18/22 kW
Spindle torque: 101 Nm
Spindle taper: HSK63A
Electrospindle
Table size: 1,200 × 1,000 mm
Table load: 5,000 kg
Tool changer: 30 positions
Maximum tool diameter: 70 mm
Maximum tool length: 300 mm
Maximum tool weight: 10 kg
Tool taper: HSK63A
Maintenance and operation manuals
CE certification
Full enclosure
Power requirement: approx. 67 kW
Machine dimensions: approx. 6,000 × 4,000 × 3,900 mm
Machine weight: approx. 21,000 kg
