GE Vivid iQ

Height: 64 mm (2.5″)
Width: 390 mm, (15.35″)
Depth: 362 mm (14.25″)
Weight with battery: 5.2 kg (11.5 lbs)

Specifications:
Digital beamformer with up to 974,026 effective digital channels
Minimum field-of-view range (depth): 1 cm (probe dependent)
Maximum field-of-view range (depth): 33 cm (probe dependent)
Width range: 10° – 168° (probe dependent)
Continuous dynamic receive focus/continuous dynamic receive aperture
Adjustable dynamic range, infinite upper level

GE Vivid iq Electrical power:
Nominal input voltage: 100-240 VAC, 50/60 Hz
Rated power consumption: 500 VA

The GE Vivid iq is an all new system, but developed based on Vivid I and Q.
It is the 2nd generation of GE’s dedicated cardiovascular portable system,
so GE integrated many experimental hardware features and interface.
Especially its console design, which has been totally changed from the former system,
Vivid q and i, and integrated 15.6″ multi touch screen enables an user
to experience more intuitive workflow.
One of the most experimental function is using a track pad instead
of a track ball that most systems currently use.
With newly the designed cart, the Vivid iq supports many peripheral devices
and four transducers including one DLP to support 6VT-D. Apparently,
the GE Vivid iq does not support 4D TEE and ICE(Intra Cardiac Echocardiography),
but those two features are expected to be integrated soon.
Due to the estimated price point over $50,000 equal to Philips CX50,
4D TEE and ICE would be key options for the GE Vivid iq to successfully settle down
its position at target market.
The clinical options and features of the GE Vivid iq are almost similar to those
of Vivid iq. Right now, due to the early version preexisted options
and features are only applied.
The advanced features expect to be loaded in the next version.

Cardiac Sector Probe
3Sc-RS [1.3 – 4.0MHz]
6S-RS [2.0 – 7.0MHz]
12S-RS [4.5 – 12.0MHz]

Linear Probe
9L-RS [2.4 – 10.0MHz]
12L-RS [4.0 – 13.0MHz]

Convex Probe
4C-RS [1.5 – 5.0MHz]

Micro Convex Probe
8C-RS [3.5 – 10.0MHz]

Endo Cavity Probe
E8Cs-RS [3.5 – 10.0MHz]

Non-imaging Doppler Probe
P2D [2 MHz]

Audult TEE Probe
6Tc-RS [3.0 – 8.0MHz]

Pediatric TEE Probe
9T-RS [4.0 – 10.0MHz]

Tissue velocity M-mode
Continuous wave Doppler
Tissue M-mode
Pulsed wave Doppler
Anatomical M-mode
Tissue velocity imaging
Tissue tracking
Tissue velocity Doppler
Blood flow imaging
B-flow
Virtual convex
Virtual apex
Coded phase inversion
Compound imaging

Sony Digital UP-D711 Termal Printer
Sony Fixture Kit for Digital UP-D711 Thermal Printer
Sony Digital UP-D25 Color Thermal Printer
Sony Digital UP-D897 BW Thermal Printer
Mitsubishi P93W/E Thermal Printer
Mitsubishi P95DW Thermal Printer
DVDRW
Eight GB memory stick
One TB USB hard drive
USB interface (5)
HDMI cable
Three-pedal configurable footswitch
Rolling bag
ECG AHA/IEC® Cables

GE Vivid iq Supplies:
• Aquasonic ultrasound gel
• Sono ultrasound wipes
• Sony UPP-110HG thermal printing paper
• Sony UPC-21L color thermal printing pack
• Mitsubishi KP95HG thermal roll paper (new)
• Mitsubishi KP65HM-CE High density thermal paper

GE Vivid iq Console ports:
• HDMI interface
• Ethernet – 10 Mbps, 100 Mbps, 1 Gbps
• Multiple USB 2.0 ports

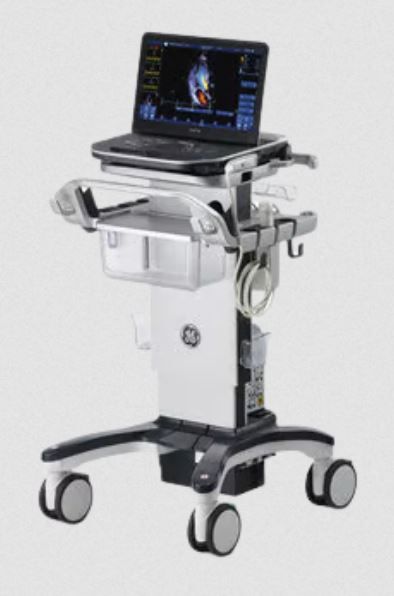

GE Vivid iq Cart Design:
• Three USB ports
• Six probe holders
• Four probe cable hooks
• Charge box (optional ) – to charge up to three batteries and to scan more than 180 min with four fully charged batteries
• Multi-probe box (optional ) – three RS, one DLP to support 6VT-D

GE Vivid iq image storage:
• On-board database of patient information from past exams
• Storage formats:

– DICOM®-compressed or uncompressed, single/multi-frame, with/without raw data, storage via clipboard and/or seamlessly directly to destination device
– Transfer/“Save As” JPEG, MPEG, AVI formats

• Storage devices (optional ) :
USB memory stick: eight GB
CD-RW storage: 700 MB (DVD option required)
DVD storage: -RW (4.7 GB)
Hard drive image storage: one TB

• Compare previous images with current exam
• Reload of archived data sets
• Tissue synchronization imaging
• Intima Media Thickness (IMT)
• CW Doppler
• Strain/Strain Rate Mode (option, enabled by Advanced QScan)
• Tissue Synchronization Imaging Mode (option, enabled by Advanced QScan)
• B-flow
• 2D stress
• Auto EF
• Automated Ejection-Fraction Calculation (AutoEF)
• Z-Scores
• Quantitative Analysis Package (Q-Analysis)
• EchoPAC™/Patient Archive
• Insite™ Express Connection (ExC) Enables Remote Service and Training

• Cardiac
• Transesophageal
• Peripheral vascular
• Fetal/OB
• Abdominal adults
• Pediatric
• Small organ
• Neonatal cephalic
• Adult cephalic
• Musculoskeletal conventional
• Musculoskeletal superficial
• Transcranial
• Transrectal
• Transvaginal
