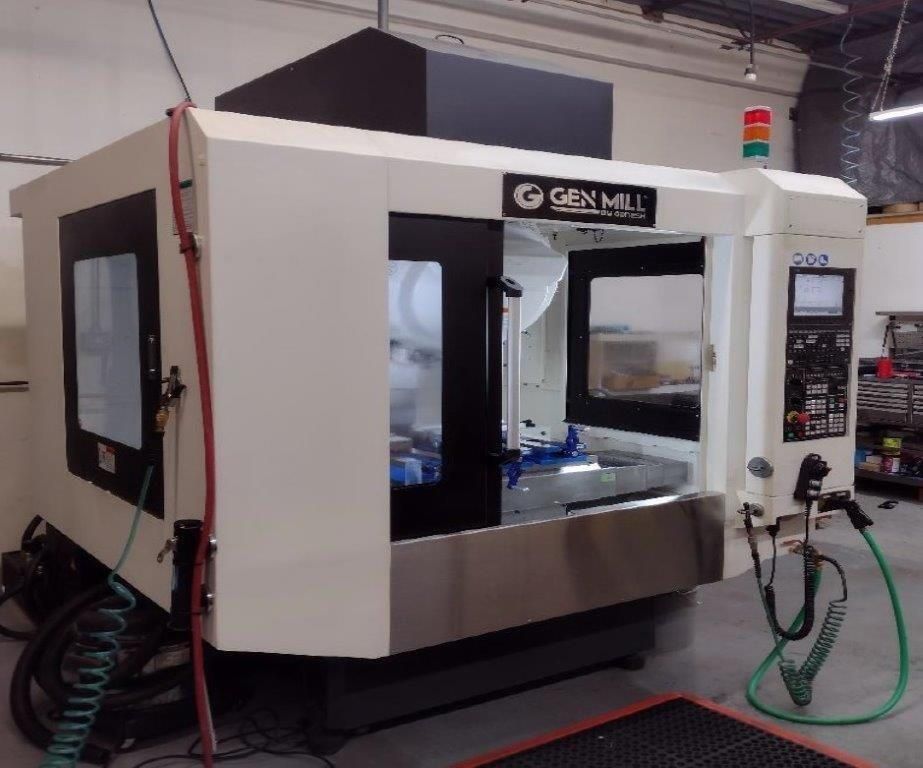

GENMILL T-700 3 Axis

GENMILL T-700
2018

Table width: 15.75"
Table length: 33.4"
Maximum table load: 550 lbs
X-axis travel: 27.56"
Y-axis travel: 16.93"
Z-axis travel: 12.99"
Spindle nose to table (min): 5.1"
Spindle nose to table (max): 18.1"
Spindle speed (min): 0 RPM
Spindle speed (max): 12000 RPM
Spindle taper: BT30BBT
Main spindle power: 7.5 HP
Tool changer capacity: 21
Rapid traverse rate: 2362 IPM

Mitsubishi 3-axis CNC control
6000 RPM synchronous tapping
BT30 BBT Big Plus spindle taper
12-position drum turret
1.6 second chip-to-chip time
50 tool holders
3 Kurt vises
