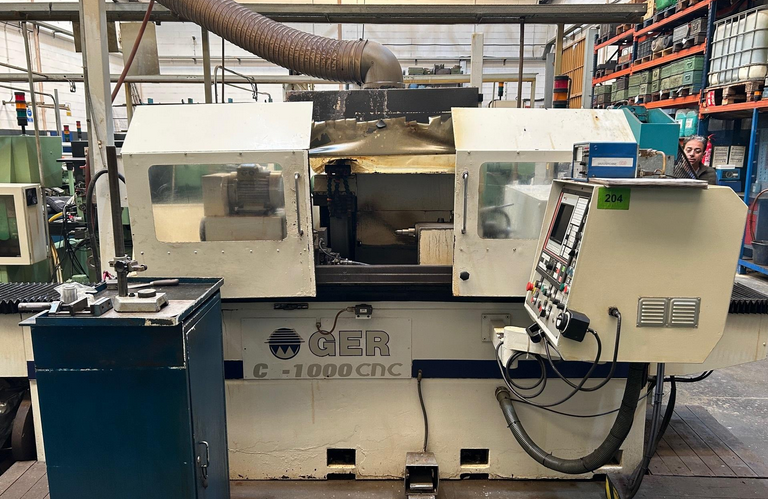

GER C-1000 CNC

Ref : 2720124-3-MT

Condition : Used

Manufacturer : GER

Model : C-1000 CNC

Year(s) : -

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

universal rectifier Ger C-1000 CNC

Distance between centers: 1150 mm
Centers' height: 140 mm
Max grinding diameter: 275 mm
Max weight between points 100 Kg.
Max weight admitted air 80 Kg.
X-axis speed: 0,01/1500 mm /min
Z-axis speed: 0,01/1500 m/me
Grinding wheel dimensions: Ø 500x90x127 mm
Revolutions of the wheel 1500 rpm
Spindle power 5,5 kw
Potencia total 14 kw
Machine dimensions: 4100x2200x2050
Approx machine weight: 4500 Kgs.

Equipped with:
Numerical Control: FAGOR 8050
Portal heads 30º 10/800 rpm
Tailstock 40 mm Defendant
