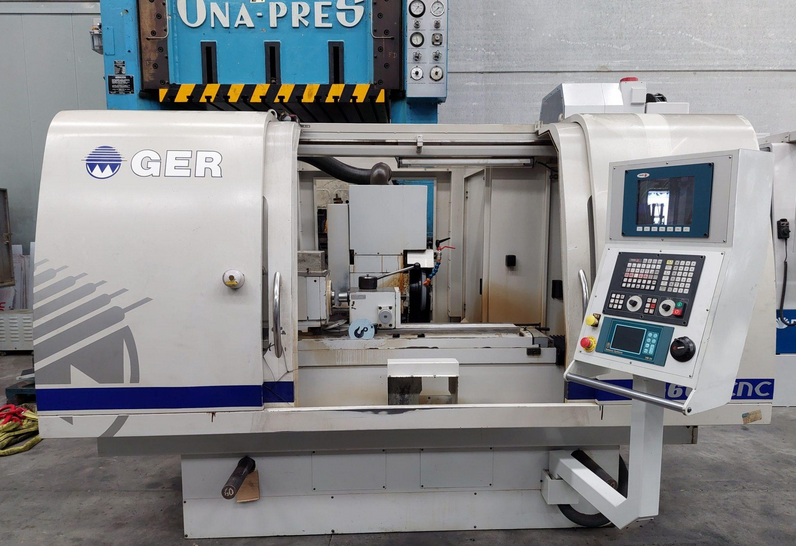

GER C-600 CNC

Distance between centers: 600 mm
Centers height: 140 mm
Max grinding diameter: 275 mm
Max weight between points: 80 kg
Max weight admitted air: 60 kg
X-axis speed: 0.01–1500 mm/min
Z-axis speed: 0.01–1500 mm/min
Grinding wheel dimensions: Ø 400x50x127 mm
Drive power, head engine: 5.5 kW
Torque: 11 Nm
Total power: 11.3 kW
Approx machine weight: 2900 kg
Machine dimensions: 3200x2200x2050 mm
Numerical control: FAGOR 8055
Tailstock
Head for internal grinding: power 1.1 kW, RPM 12000/18000
Balance Systems VM20
Headpiece C head
7 wheel holders: Ø 120 mm, 160 mm, 170 mm, 170 mm, 175 mm, 180 mm, 180 mm
5 wheels: Ø 240 mm, 300 mm, 330 mm, 360 mm, 400 mm
Balancer wheels
Two three-jaw Röhm chucks: Ø 120 mm, Ø 150 mm
