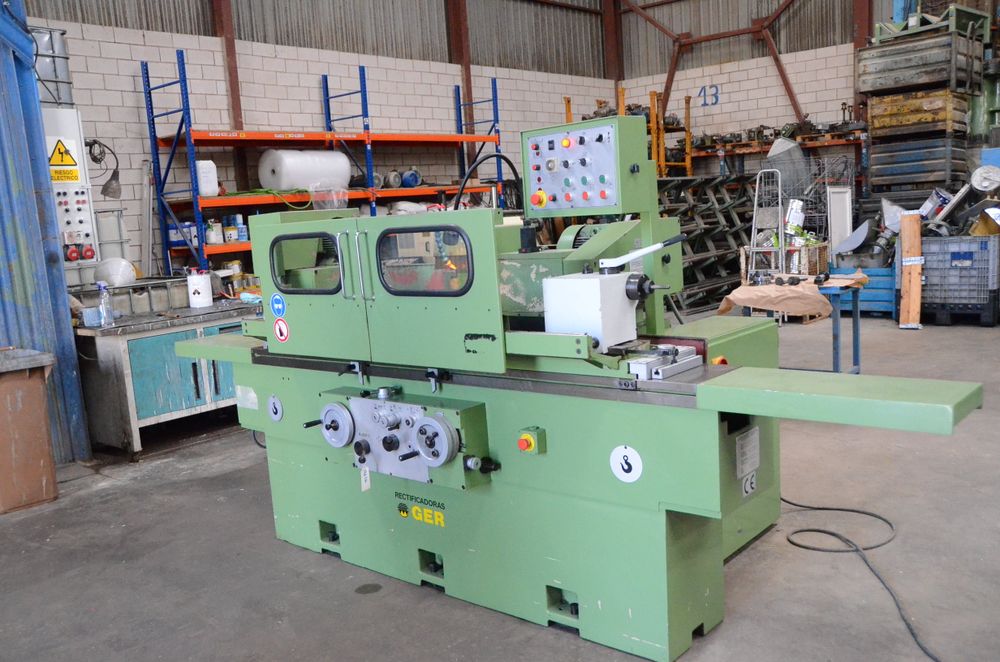

GER C 1000

Distance between centers: 1000 mm
Center height: 180 mm
Max grinding diameter: 355 mm
Max weight between centers: 300 kg
Max weight with plate: 125 kg
X-axis travel: 350 mm
X-axis speed: 0.01–6000 mm/min
X-axis resolution: 0.0001 mm
X-axis measurement system: Digital ruler
Z-axis travel: 1300 mm
Z-axis speed: 0.01–15000 mm/min
Z-axis resolution: 0.0001 mm
Z-axis measurement system: Digital ruler
Grinding wheel dimensions (OD x ID x width): Ø500 x Ø203 x 80 mm
Main motor power: 7.5 kW
Grinding head rotation angle: -30° to +210°
Workhead rotation speed: 10–800 rpm
Workhead taper: Morse 5
Tailstock taper: Morse 4
Tailstock shank diameter: 60 mm
Counterpoint stroke: 40 mm
Machine dimensions (L x W x H): 4600 x 2400 x 2050 mm
Machine weight: 6500 kg
