GER Cu-600
Ref :
2718095-3-MT
Condition :
Used
Manufacturer :
GER
Model :
Cu-600
Year(s) :
2004
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)

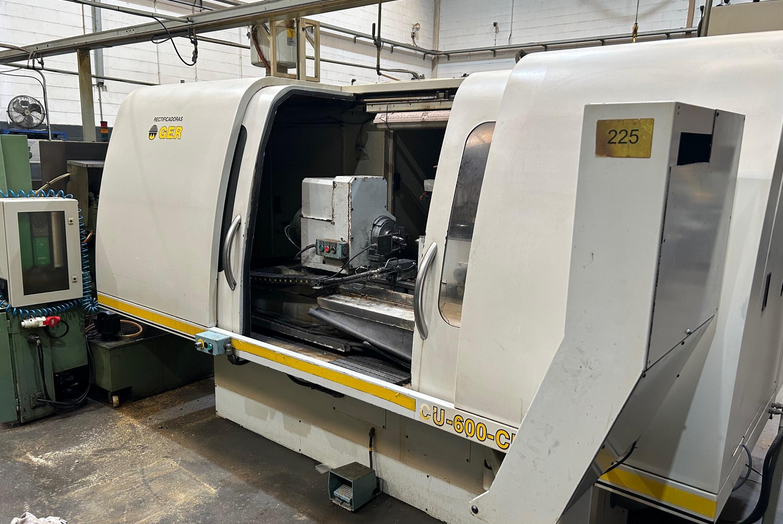

universal rectifier Ger Cu-600
Year: 2004
Distance between centers: 600 mm
Centers' height: 180 mm
Max grinding diameter: 35mm
Max weight between points 150 Kg.
Max weight admitted air 60 Kg.
X-axis speed: 0,01/1500 mm/min
Z-axis speed: 0,01/1500 mm/min
Grinding wheel dimensions: Ø 500x80x203 mm
Revolutions of the wheel 1.500 rpm
Approx machine weight: 5500 Kgs
Machine dimensions: 4600x2400x2050 mm
Equipped with:
Numerical Control: FAGOR 8055
Head for internal grindings
Tailstock
Marposs E9 Meter
Headpiece C head
Steady rest
Vacuum cleaner
Paper filter
Various sets of grinding wheels
