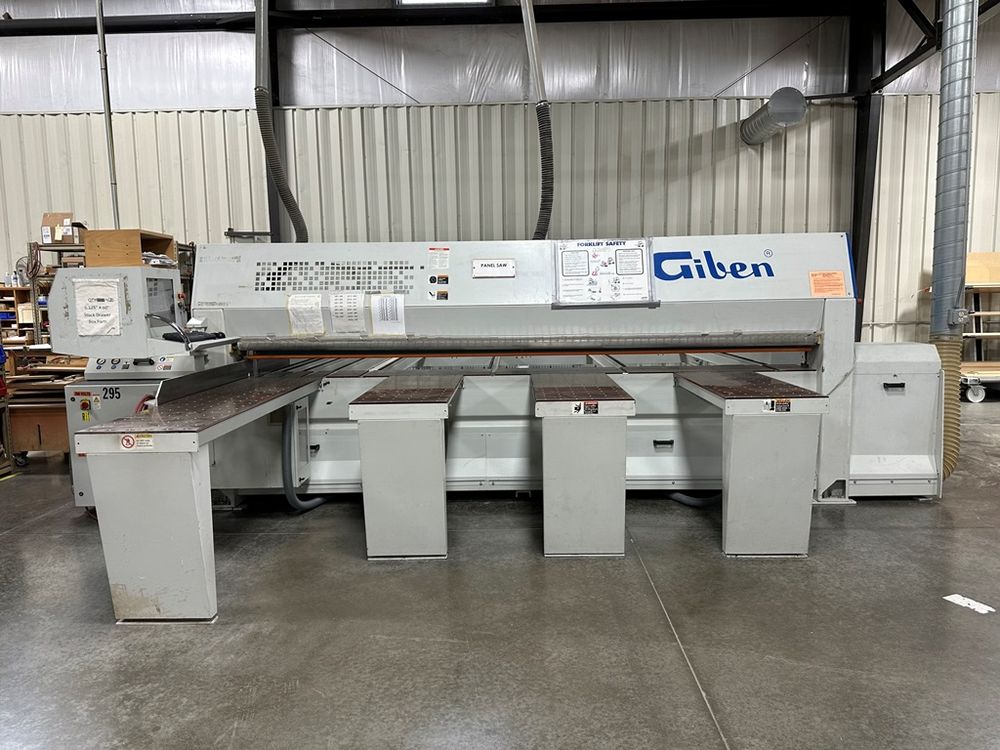

Giben Smart 75 SP

Cutting length 3800mm (12.5`)
Blade projection 75mm (2.95")
Grippers opening 65mm (2 9/16")
Max depth of clean cut 64mm (2 1/2")
Main blade diameter 320mm
Main saw motor 15HP
Scoring saw diameter 180mm
Scoring saw motor 1.5HP
Saw carriage traverse by brushless AC with inverter
Saw carriage feed speeds from 5 to 50m/m (16 to 131f/m)
Carriage return at 60m/m (131f/m)
Pneumatic locking, automatic positioning side aligner by roller behind cut line
Side aligner stroke 1220mm (48")
Min width to side align 60mm (2.4")
Pneumatic quick release saw blade hubs
Pusher stroke 3350mm (11")
Pusher drive by brushless AC motor with inverter
Pusher guidance by round bar
Pusher advancing speeds .8 to 25m/m
Pusher return at 40m/m -7 floating grippers
Roller profiles under pusher
PLC Moeller
Standard office PC
Pentium processor
Windows XP -15" color CRT monitor -102 key standard keyboard with mouse
Real time graphic display of cutting patterns
Metric & Imperial measure
Selectable English, French, Spanish
On screen help, error messages and on screen diagnostics
LAN network ability
Downloading from optimizing programs
Uploading of data for further processing
1 only 2000 X 510mm and 3 only 1300 X 510mm air tables
Safety trip bar along cut line
Safety flaps
Saw carriage and pusher cables in cable tracks
Protection fence around rear of machine
Time delay on saw carriage cover
On board pattern planner software included.
