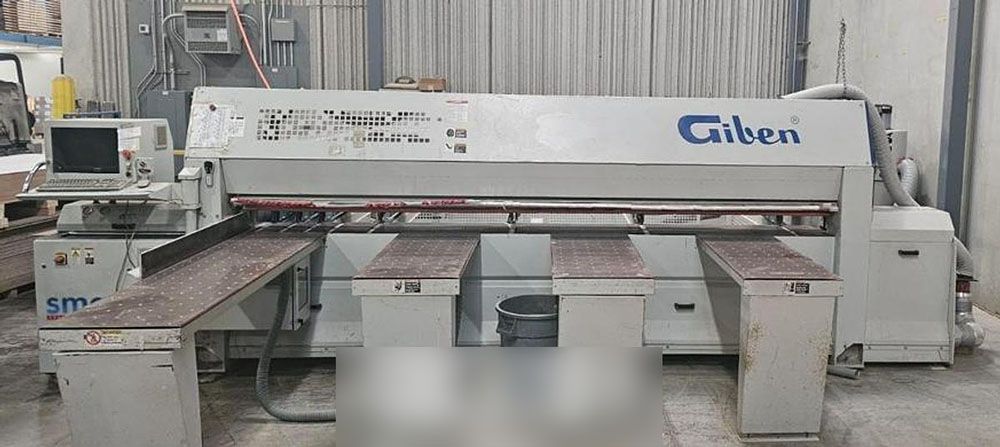

Giben Smart SP75

Used beam saw
Front-Load, Automatic Panel Saw:

Specifications:
149" (3,800 mm) Overall cutting length; 131.8" (3,350 mm) pull back 2.95" (75 mm) max. blade projection.
15 HP (11 kW) Main & 1.5 HP (1.1 kW) scoring motor; 3,800 RPM main saw blade; 6,000 RPM scoring blade with external adjustment.
Saw Carriage, Variable saw carriage forward speed: 16 - 164 FPM (5 - 50 MPM); return speed: 197 FPM (60 MPM).
Rack & pinion drive; driven by AC brushless Servo motors.

Pusher FenceElectronically controlled overhead program fence with: (7) Pneumatic gripper clamps; max. clamp opening: 2.56" (65 mm).
Variable forward pusher speed: 2-1/2 - 82 FPM (0.8 - 25 MPM); return speed: 131 FPM (40 MPM).
Pusher driven on round bar-ways by AC brushless Servo motors.

Operator & Machine ControlPC Front-End with: Windows "XP" + "Pentium" processor
Operating System with: Multitasking & easy programming of very complex cutting patterns.
15" CRT Monitor displays: REAL TIME Graphics of cutting dimensions & patterns; program cutting list; manual cuts; diagnostic & online help.
Data input by adjustable keypad pendant; standard industrial: Keyboard, mouse & CD-ROM drive; direct downloading from office PC is possible.
"MOELLER" PLC Guarantees full management of all machine movements (pressure beam; saw carriage; side aligner pusher positioning, etc.).
The numerical control: Adjusts the optimum saw blade projection for the stack of panels being cut;
sets the most appropriate cutting speed in relation to the stack itself (when necessary to the width of trim cut, too.)

Rear of Machine(9) Rear support rails with: 80 mm Dia. roller modules; rear of machine enclosed for safety.
Front of MachineAutomatic side/crosscut aligning device with: 2.4" - 48" (60 - 1,220 mm) stroke; 90" (2,300 mm) long crosscut fence (front-to-back).
(1) Front-mounted air floatation table: 20" x 78" (510 x 2,377 mm) & (3) front-mounted air floatation tables: 20" x 60" (510 x 1,524 mm).
Complete with:G-Lock "Quick Change" saw blade system.
