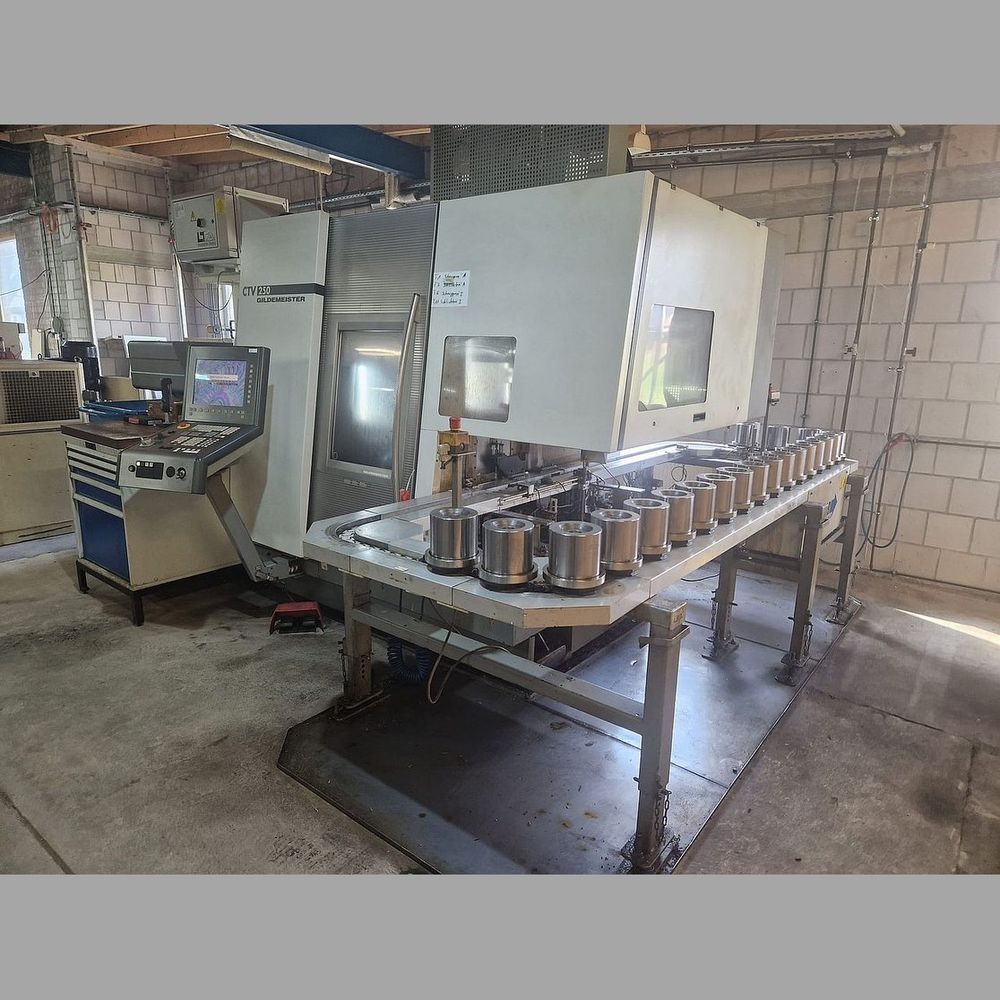

Gildemeister Siemens 840 D powerline 5000 rpm CTV 250 4 Axis

Ref : 2731648-3-GO
Condition : Used
Manufacturer : Gildemeister
Controller : Siemens 840 D powerline
Spindle Speed : 5000 rpm
Model : CTV 250
Nb Of Axis : 4 Axis
Year(s) : 2004
Quantity : 1
Location : Seller or machines location:
EUROPE (Western and Northern)

Travel X: 650 mm
Travel Z: 300 mm
Travel Y turret: 180 mm

Rapid traverse X: 60 m/min
Rapid traverse Y: 40 m/min
Rapid traverse Z: 40 m/min

Max. acceleration X: 5 m/s²
Max. acceleration Y: 5 m/s²
Max. acceleration Z: 4 m/s²

Feed force X: 4000 N
Feed force Y: 3000 N
Feed force Z: 6000 N
C axis: Yes

Control: Siemens 840 D powerline
Measuring probe
Fully enclosed work area
Work area light

Electrostatic oil/emulsion mist extraction unit
Chip conveyor
Coolant unit
Switchable double cartridge filter
Cooling system for coolant
High pressure pump: 20 bar
Loop-type part storage conveyor

Max. workpiece length: 210 mm
Max. swing diameter over bed cover: 320 mm
Max. clamping chuck diameter: 250 mm
Max. speed main spindle: 5000 rpm
Max. power main spindle at 10-40/100% duty: 32/25 kW
Max. torque main spindle at 10-40/100% duty: 360/260 Nm

Spindle diameter front bearing: 120 mm
Spindle flange size: 170h5
No. of stations/driven: 12/12
Tool holder in turret: VDI 40
Speed tool drive: 4000 rpm
Torque tool drive: 36 Nm
Machine weight approx.: 8000 kg
3-jaw clamping chuck
