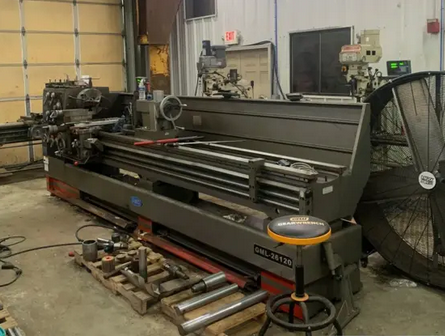

GMC Engine Lathe 1600 RPM GML-26120

GMC GML-26120
2022

Swing over bed: 26"
Swing over cross slide: 17.25"
Swing in gap: 35.375"
Length between centers: 120"
Gap length to spindle: 9"
Gap length to chuck jaws: 4.5"
Width of bed: 16"
Spindle bore: 4.125"
Spindle mount: D1-8
Spindle speed range: 25 – 1600 RPM
Spindle speed steps: 16
Spindle center taper: MT5
Spindle length without chuck: 20.5"
Top slide travel: 9"
Cross slide travel: 14.5"
Tailstock quill diameter: 3.5"
Tailstock quill travel: 9.25"
Tailstock taper: MT5
Lead screw: 1.25" x 4 TPI
Inch threads: 80 to 7/16 TPI, 54 kinds
Metric threads: 0.45 to 120 mm, 54 kinds
Module threads: 0.25 to 60 mm, 46 kinds
Diametral pitch threads: 7/8 to 160 DP, 42 kinds
Longitudinal feed rate: 0.0016 – 0.055 IPR, 25 kinds
Cross feed rate: 0.0008 – 0.027 IPR, 25 kinds
4-way rapid traverse (carriage, cross, longitudinal)
Motor power: 15 HP
Voltage: 220V/440V
Phase: 3
Removable gap
Taper turning attachment
SINO digital readout
Automatic longitudinal carriage stop
12" 3-jaw chuck with reversible jaws
16" 4-jaw chuck
18" face plate
7.5" steady rest with roller jaws
3" follow rest
4-way tool post
Foot brake
Halogen work light
Coolant system
Full-length splash guard
Dead centers
Thread chasing dial
Toolbox
Leveling pads
