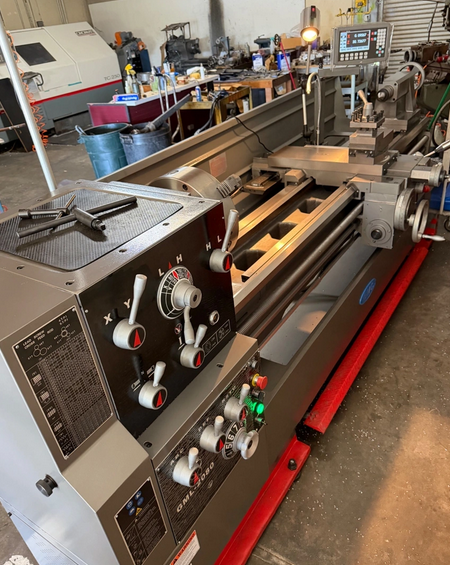

GMC Gap Bed Engine Lathe 1,800 RPM (12 Steps) GML-2080

Gap Bed Engine Lathe (As New Customer lost contract, machine has not run one part)

Swing Over Bed: 20"
Swing Over Cross Slide: 12-1/2"
Swing in Gap: 29-1/8"
Distance Between Centers: 80"
Spindle Bore: 3-1/8"
Spindle Mount: D1-8
Spindle Center Taper: MT #7 (with MT7/MT5 reducing sleeve)
Spindle Speeds: 25 – 1,800 RPM (12 Steps)

Feeds & Threading:
Longitudinal Feeds: 0.0011 – 0.063 IPR (42 kinds)
Cross Feeds: 0.0003 – 0.018 IPR (42 kinds)
Inch Threads: 2 – 112 TPI (60 kinds)
Metric Threads: 0.1 – 14 mm (41 kinds)
Diametral Pitch Threads: 4 – 112 DP (50 kinds)
Module Threads: 0.1 – 7 mm (34 kinds)

Slides & Tailstock:
Top Slide Travel: 5"
Cross Slide Travel: 11-1/4"
Tailstock Quill Diameter: 2-3/8"
Tailstock Quill Travel: 5-1/8"
Tailstock Taper: MT4

Motor: 10 HP, 3-Phase
Electrical: Prewired 220VAC / 35A (Optional 440VAC / 20A)
Coolant Pump: 1/8 HP, 3-Phase

Machine Dimensions (L x W x H): 128" x 43" x 59"
Weight: 6,350 lbs
