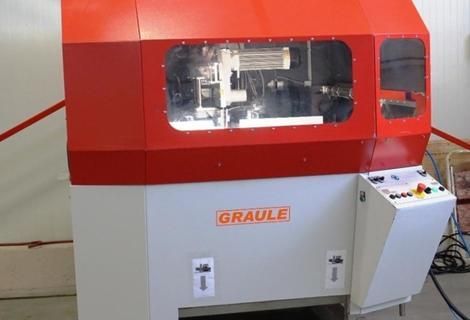

Graule ZS 265 N-K

Crosscut and miter saw
few operating hours
The saw is suitable for cutting wood, wooden materials, plastic and aluminum profiles.
with pneumatic saw feed
The saw blade is swiveled and tilted by an electric motor
The cabin is opened and closed pneumatically with a foot pedal
Saw blade diameter 650 mm, bore 50 mm

cutting area:
Cross section 90°: 50 mm
Miter cut 45°: 350 mm
Height of cut at 90°: 265 mm
Miter range horizontal: 45° - 90° - 30°
Miter range vertical: 60° - 90° - 30°
Suction diameter: 100 mm
Electrical connection: 400 V, 16 A, 50 Hz
Three-phase motor 3 kW, with electro-mechanical brake
Saw blade speed 1400 rpm
Air pressure 6 - 8 bar
Air requirement approx. 1000 liters/hour.
4 pneumatic material clamping cylinders

Including special accessories.
Saw blade for PVC and aluminum 650 mm
Laser device (not mounted)
Digital angle display
2 pcs. roller blocks for material support

Complete technical documentation
machine ready to plug in
Transport dimensions approx. 1700 x 1800 x 2000 mm LWH
Weight approx. 1000 kg
