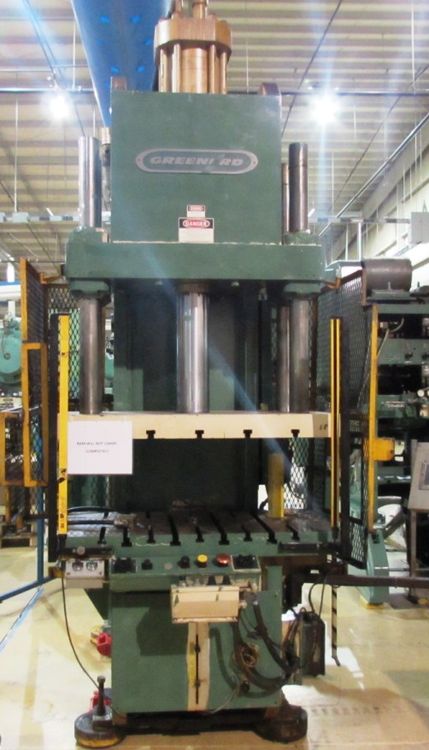

Greenerd HCA-100-57R27, Press Machine Max. 100 TON

Ref : 1182611-3-GO
Condition : Used
Manufacturer : Greenerd
Model : HCA-100-57R27, Press Machine
Pressure : Max. 100 TON
Year(s) : 1995
Quantity : 1
Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)
Last check : 02 May. 2020

Brand: GREENERD
Model: HCA-100-57R27
Year: 1995
Press Machine

Description:
used

Features/Specs
Capacity 20 - 100 tons (adjustable)
Stroke 30"
Open daylight 34"
Closed daylight 4"
Speeds, Closing 686 IPM
Pressing 105IPM
Return 681 IPM
Bed area 48" LR x 24" FB
Ram area 48" LR x 24" FB
Guide rods (4) 3 1/2" diameter
Floor to bed 36"
Cylinder bore 8 1/2"
Ram diameter 6"
Maximum system pressure 3,524 psi
Pump capacity 57 gpm & 27 gpm
Main motor 50 HP
Cushion capacity 20 tons (adjustable)
Cushion stroke 10" (adjustable)
Approximate overall dimensions 60" x 72" x 134" high
Approximate weight 22,600 lbs.

Details
Machine is equipped with adjustable tonnage control
T-slotted bed & ram, Omron PLC
adjustable cushion
high temp alarm, heavy duty construction option
Lite touch dual hand controls
light curtains, control pendant
vibration mounts
