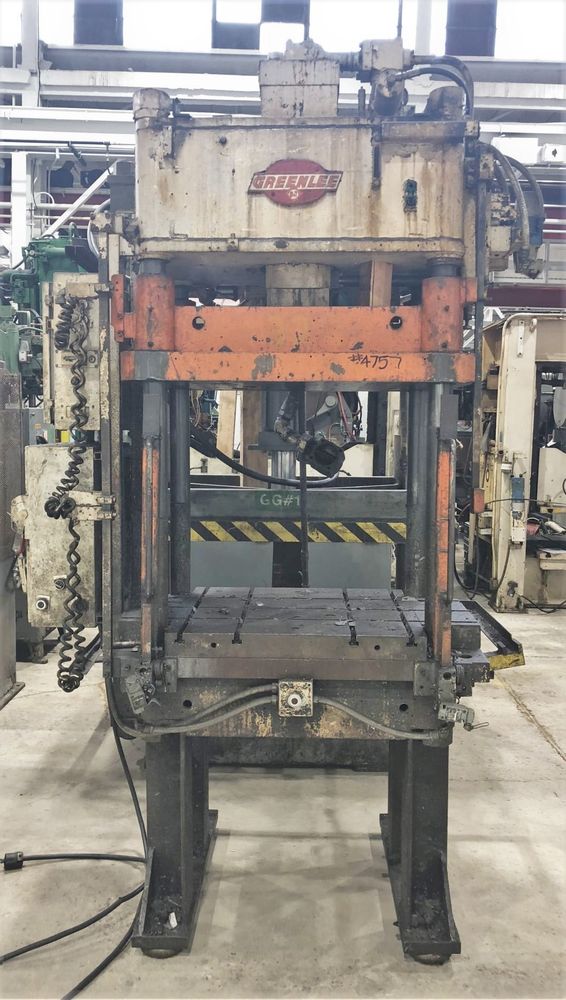

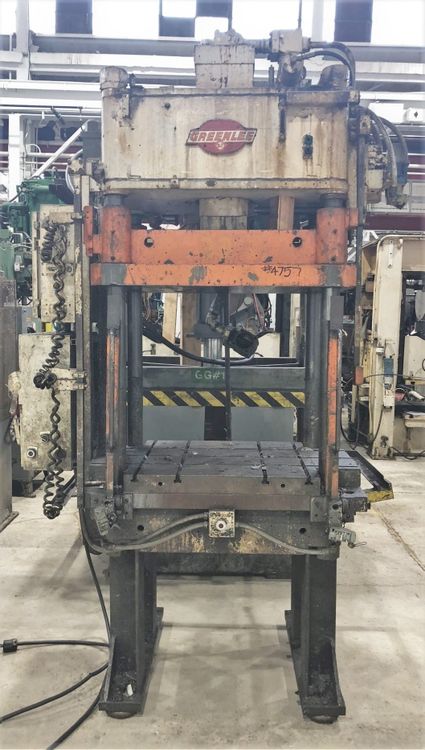

Greenlee Custom 20 Ton 4 Post Hydraulic Press

Press force: 20 Ton
Max stroke: 16"
Max daylight to bed: 32"
Overall bed & ram area: 47" x 28" (R-L x F-B) with 3" thick bolster plate
Distance between posts: 32" x 16" (R-L x F-B)
Useable bed & ram area: 32" x 28" (R-L x F-B)
Distance floor to bed: 38.5"
Post size: 3" dia.
Cylinder size: 5" dia.
Motor: 25 HP 3-60-230/460V Sterling, 66.4 / 33.2 Amps
Overall dimensions: 72" x 54" (R-L x F-B) x 82" H
Approx. weight: 8,500 lbs

Features / Equipment:
Complete control panel
Hydraulics currently missing, included with reconditioning
Small footprint, suitable for low ceilings (6'10" high)
