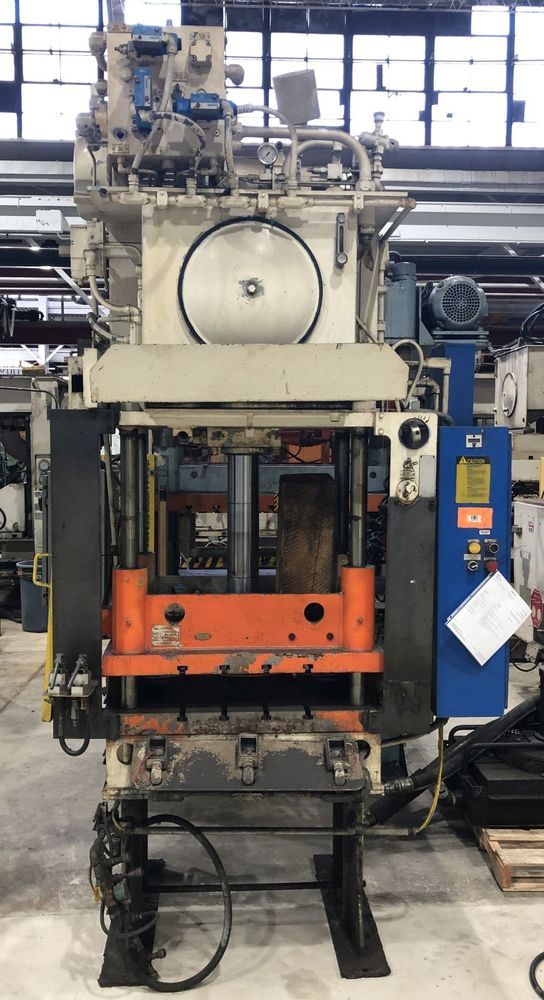

PH 4030T 35 ton

Press force 35 ton
Max. stroke 19 in
Max. daylight 24.5 in
Bed & ram area 40 × 24 in
Bolster plate hole 24 × 15 in
Distance between posts 31 × 14 in
Usable bed & ram area 31 × 24 in
Advance speed 1250 IPM
Pressing speed 88 IPM
Return speed 950 IPM
Post diameter 2.5 in
Cylinder rod diameter 5 in
Cylinder bore diameter 6 in
Max. pressure 3000 psi
Hydraulics Vickers pumps and valves
Motor power 15 HP
Motor voltage 480 V
Motor frequency 3 phase 60 Hz
Motor current 18 A
Control Allen-Bradley PLC-5/10
Dimensions 68 × 49 × 132 in
Weight 10000 lbs
Safety latch on ram
