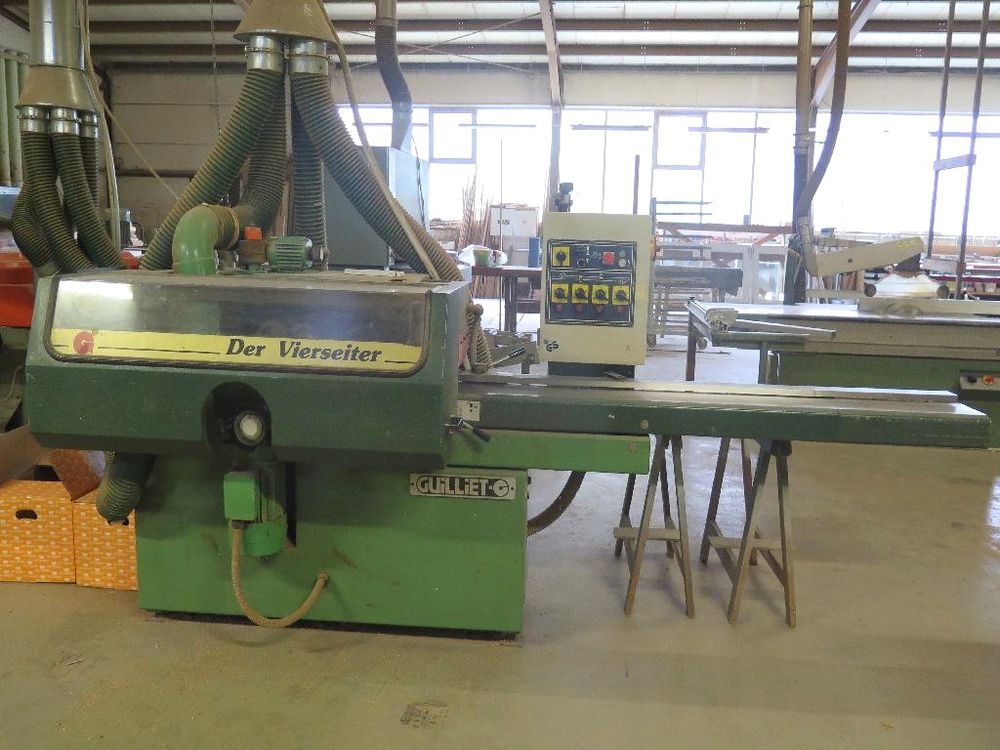

Guilliet KXY

Four-Side Planer
Maximum planing width 180 mm
Maximum planing height 120 mm
4 planer shafts
Lower planer shaft approx. 3.7 kW
Right shaft approx. 3.7 kW
Left shaft approx. 3.7 kW
Top shaft approx. 5.5 kW
Minimum planing area 30 mm x 6 mm
Planer table length approx. 2000 mm
Feed speeds 6 and 12 m/min.
Spindle diameter 30 mm
Feed motor 0.55 kW
Height adjustment 0.18 kW
Extraction connection diameters 160, 120, and 140 mm
Including planer heads
Weight approx. 1200 kg
