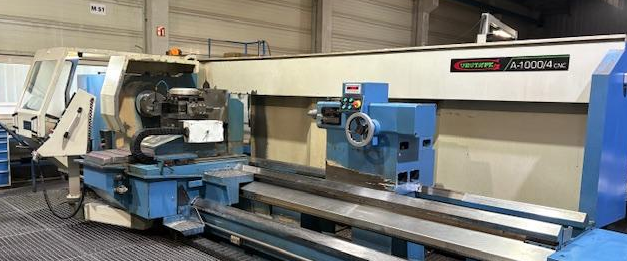

Gurutzpe Siemens 810D 1,000 rpm A-1000/4 CNC 3 Axis

Saddle travel (X-axis): 625 mm
Distance between centers (Z-axis): 4,000 mm
C-axis: Yes
CNC control: Siemens 810D
Maximum swing over bed: 1,170 mm
Maximum swing over cross slide: 900 mm
Center height: 600 mm
Bed width: 1,090 mm
Spindle bore: 155 mm
Spindle bearing diameter: 203 mm
Spindle nose: DIN 55026 A-11
Spindle speed range: 0–1,000 rpm
Total installed power: 40 kW

Features / equipment
4-jaw chuck Ø 800 mm
SAUTER 4-position turret
Milling device
Grinding device
Boring device
Electronically motorized tailstock with expansion control
Hydraulic steady rest capacity 90–350 mm
Three-point steady rest
Refrigerated electrical cabinet
Chip conveyor
Various toolholders and tools
