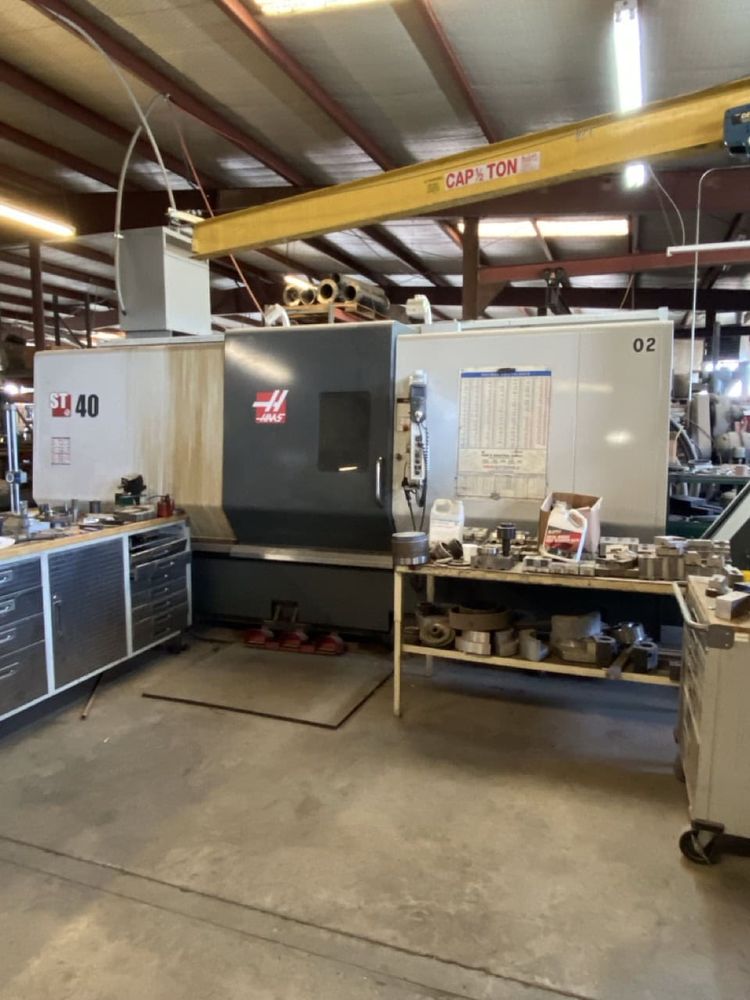

Haas CNC CONTROL 2,400 RPM ST-40 4 Axis

Haas ST-40
Year: 2013

Max Turning Diameter: 25.5"
Max Turning Length: 44"
Swing Over Front Apron: 34"
Swing Over Cross Slide: 25.5"
Bar Capacity: 4.0"
Chuck Size: 15"
Spindle Motor Power: 55 HP
Spindle Bore: 4.62"
Max Spindle Speed: 2,400 RPM
Spindle Nose: A2-8
Turret Type: Hybrid BOT/VDI
Tool Positions: 12 stations
Live Tool Motor Power: 12 HP
C-Axis: Yes (0.001° indexing)
X-Axis Travel: 14.5"
Z-Axis Travel: 44"
Z-Axis Servo Motor Power: 12 HP
Approximate Dimensions: 170" x 90" x 90"
Approximate Weight: 19,000 lbs


HT Live Tooling with C-Axis
Hybrid BOT/VDI Turret; 12 Stations
Automatic Tool Presetter
Belt-Type Chip Conveyor
High Intensity Lighting
Programmable Servo Tailstock, MT5
Steady Rest Provision
