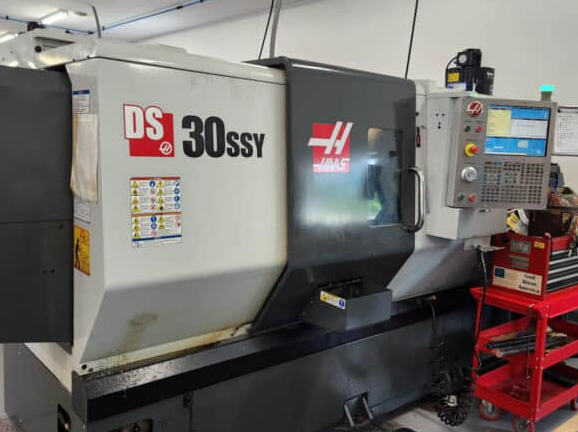

Haas Haas CNC Control 4800 rpm DS-30SSY 4 Axis

X axis travel: 12.5″
Y axis travel: ±2.00″
Z axis travel: 23″
Rapid traverse X: 472 ipm
Rapid traverse Y: 472 ipm
Rapid traverse Z: 1200 ipm
C axis main spindle rating: 5 hp
C axis positioning accuracy: ±0.01°
Control: Haas CNC Control
Tool presetter
Bar capacity: 3.0″
Swing over front apron: 31.75″
Swing over cross slide: 20.75″
Swing over second spindle: 21.75″
Max cutting diameter: 16.0″
Max cutting length: 23″
Spindle motor power: 30 hp
Spindle max speed: 4800 rpm
Spindle max torque: 275 ft-lb @ 600 rpm
Spindle nose: A2-6
Spindle bore: 3.50″
Sub spindle motor power: 20 hp
Sub spindle max speed: 4800 rpm
Sub spindle max torque: 110 ft-lb @ 700 rpm
Sub spindle nose: A2-5
Sub spindle max cutting diameter: 18″
Sub spindle max cutting length: 23″
Sub spindle bore: 2.44″
Sub spindle brake clamp force: 500 lb
Sub spindle brake diameter: 7″
Sub spindle control type: Positioning only
Live tooling speed: 0–3000 rpm
Live tooling peak torque: 195 in-lb
Live tooling continuous torque: 75 in-lb
Live tooling brake clamp force: 1000 lb
Live tooling brake diameter: 13.25″
Live tooling type: VDI40
Turret tool stations: 24
OD/ID tool configuration: 12 VDI / 12 BOT
OD tool size: 1.0″
Turret index time (1 tool): 1 sec
Boring bar rear clearance: 8.5″
Coolant capacity: 55 gal
Air required: 4 scfm @ 100 psi
Machine weight: 14600 lb
