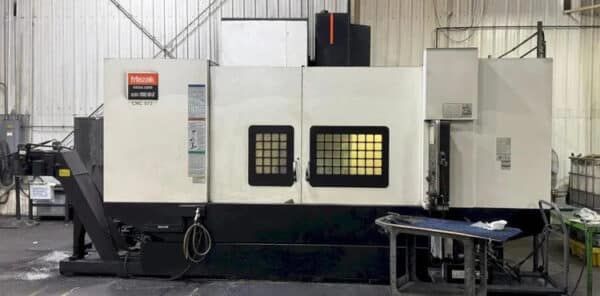

Mazak Matrix Nexus 2 Control 12,000 RPM NEXUS 700E/40-II 4 Axis

X-axis travel 80″
Y-axis travel 27.6″
Z-axis travel 28.3″
C-axis
Matrix Nexus 2 Control
12.1” Color LCD
EIA/ISO Code Input Function
Additional EIA/ISO Functions
LAN Port in Electrical Cabinet
USB I/F (2 Port)
Absolute Encoder System
Manual Pulse Generator 1 Dial (Detachable)
Table size 80″ x 27.5″ with T-Slots
30 Tool Magazine (CAT-40)
Total Cover without top cover
Hi-Press Coolant Thru Spindle System
Roller Guide
Operator door with interlock with lock-switch
Cover coolant
Dry Pit Foundation with complete toe-clamp
Spindle motor 25 HP
Spindle speed 12,000 RPM
Power Transformer
Relocation Device
Windows 7 Operating System
Hand Held Coolant Nozzle
BJGOO Slope Constant
BJMAZACC -2D Software (Shape Compensation)
Nikken CNC 302MA NC Rotary Table Package
Dimensions 198″ x 139″ x 140″
Weight 26,500 LBS
