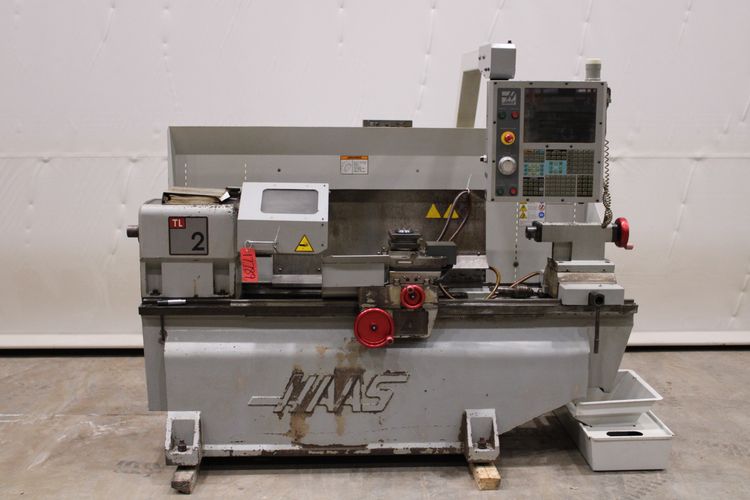

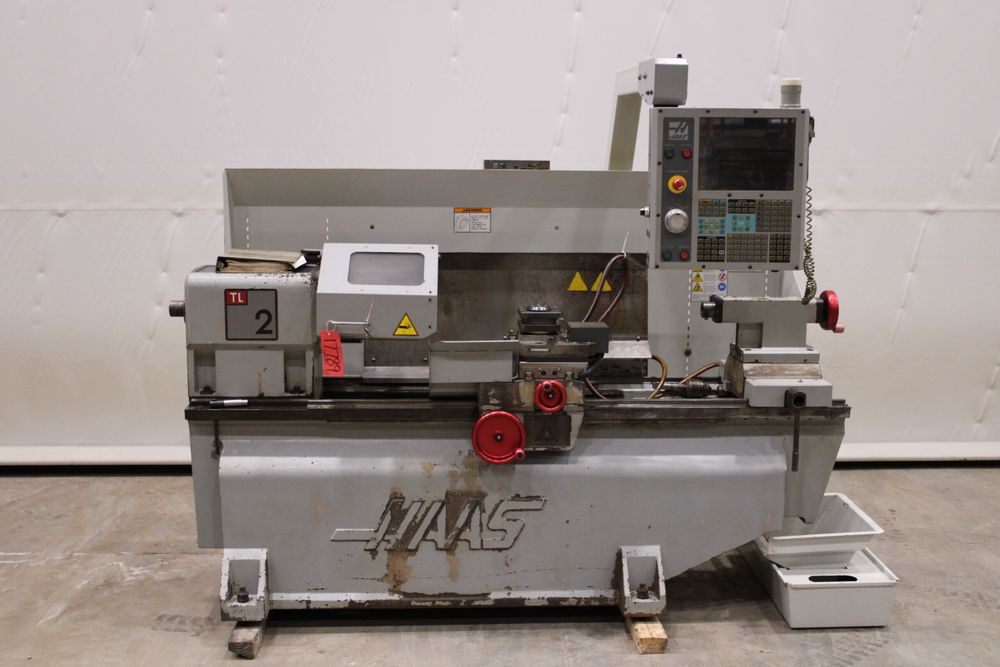

Haas CNC Control 2000 rpm TL-2 CNC LATHE 2 Axis

Ref : 2780465-3-AW
Condition : Used
Manufacturer : Haas
Controller : CNC Control
Spindle Speed : 2000 rpm
Model : TL-2 CNC LATHE
Nb Of Axis : 2 Axis
Year(s) : 2005
Quantity : 1
Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

Swing Over Cross Slide: 11.1 in
Swing Over Front Apron: 16.0 in
Between Centers: 48 in
Maximum Cutting Diameter: 16 in
Maximum Cutting Length: 48 in
Chuck Size (max): 10 in
X Axis Travel: 8 in
Z Axis Travel: 48 in
Rapid Traverse X Axis: 75 ipm
Rapid Traverse Z Axis: 150 ipm
Maximum Thrust X Axis: 3096 lb
Maximum Thrust Z Axis: 2340 lb
Spindle Speed Max: 2000 rpm
Spindle Power: 12 hp
Spindle Torque: 150 ft-lb @ 150 rpm
Spindle Nose: A2-5
Spindle Bore Diameter: 2.925 in
Chuck Type: 10 in 3 jaw chuck
Machine Weight: 4600 lb
