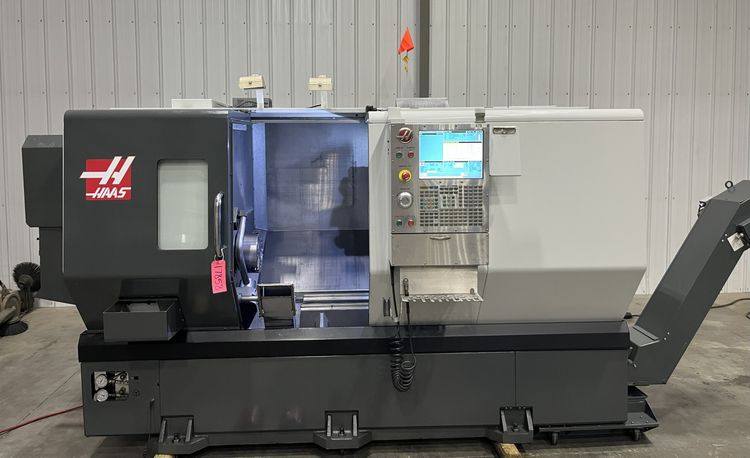

Haas CNC Control 3400 rpm ST-30 CNC TURNING CENTER 2 Axis

Swing Over Front Apron: 31.75 in
Swing Over Cross Slide: 20.75 in
Swing Over Tailstock: 23.0 in
Chuck Size: 10.0 in
Maximum Cutting Diameter: 21.0 in
Maximum Cutting Length: 26.0 in
Bar Capacity: 3.0 in
Between Centers: 30 in
X Axis Travel: 12.5 in
Z Axis Travel: 26 in
Rapid Traverse X Axis: 945 ipm
Rapid Traverse Z Axis: 945 ipm
Maximum Thrust X Axis: 4100 lb
Maximum Thrust Z Axis: 5100 lb
Spindle Speed Max: 3400 rpm
Spindle Motor Power: 30 hp
Spindle Torque: 300 ft-lb @ 500 rpm
Spindle Torque with Gearbox Option: 1000 ft-lb @ 150 rpm
Spindle Nose: A2-6
Spindle Bore Diameter: 3.50 in
Tool Capacity: 12 stations
Tool Arrangement: Any combination OD/ID tools (turret dependent)
Boring Bar Rear Clearance: 4.0 in
Chip Conveyor: Included
Tailstock: Included
Automatic Tool Presetter: Included
High Pressure Coolant: 300 psi
Auxiliary Coolant Filter: Included
Coolant Tank Oil Skimmer: Included
High Intensity Lighting: Included
Air Required: 4 scfm @ 100 psi
Coolant Capacity: 55 gal
