Haas CNC CONTROL 5,000 RPM ST-20SS 2 Axis

CNC TURNING CENTER

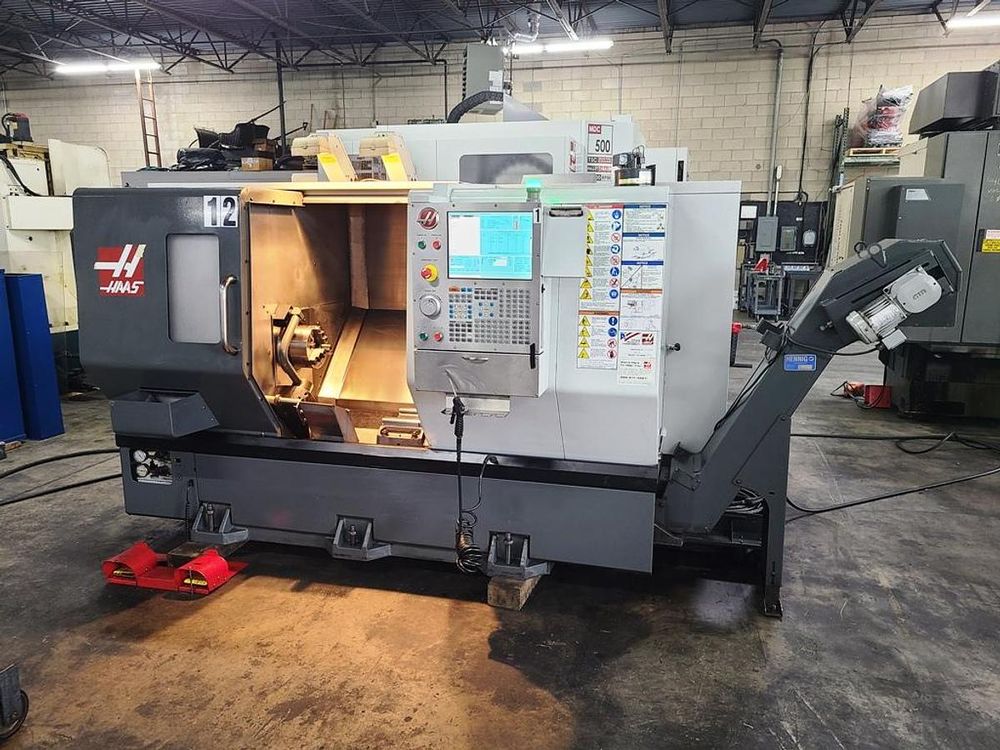

HAAS ST-20SS
Year: 2010

Maximum Swing: 31.75"
Center Distance: 24"
Maximum Turning Diameter: 10"
Maximum Turning Length: 21"
Bar Capacity: 2"
Spindle Nose: A2-6"
Spindle Bore: 3.5"
Spindle Speed: 5,000 RPM
24 Position Hybrid Turret (VDI)
Rapids: 1200 IPM (Z-axis), 945 IPM (X-axis)
Tailstock Taper: #4 Morse
Tailstock Travel: 20"

Equipped with:
8" Samchully 3 Jaw Hydraulic Chuck
Auto Probe Arm
Rigid Tapping
Tailstock
High Intensity Lighting
Chip Conveyor
Assorted Turret Tooling
Lube System Grease Reservoir (Type 3)
30 HP Main Motor
Wired for 3 Phase, 60 Cycle, 220 Volts

Dimensions & Weight:
Overall Size: 152" L x 76" W x 78" H (with conveyor installed)
Weight: 9,000 lbs
Coolant Tank: 77" L x 36" W x 27" H
