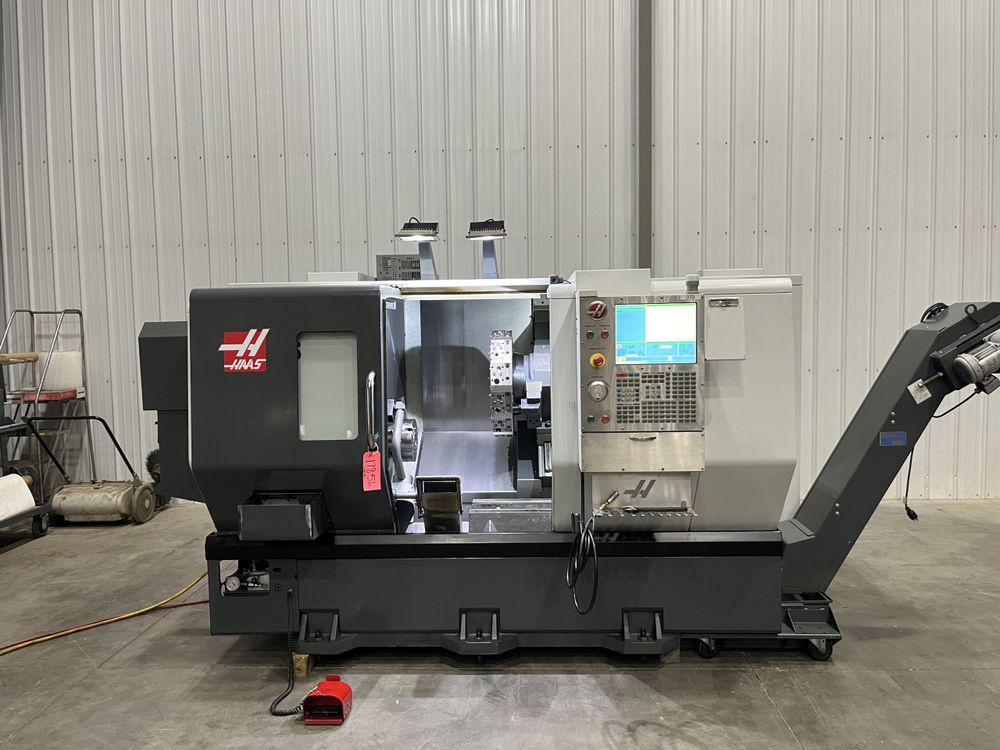

Haas CNC Control 5000 rpm ST-20SS CNC TURNING CENTER 2 Axis

Swing Over Front Apron: 31.75 in
Swing Over Cross Slide: 20.75 in
Swing Over Tailstock: 23.0 in
Bar Capacity: 2.0 in
Chuck Size: 8.3 in
Maximum Cutting Diameter: 10.0 in
Maximum Cutting Length: 21 in
X Axis Travel: 9.3 in
Z Axis Travel: 21.0 in
Rapid Traverse X Axis: 945 ipm
Rapid Traverse Z Axis: 1200 ipm
Maximum Thrust X Axis: 4100 lb
Maximum Thrust Z Axis: 4050 lb
Spindle Speed Max: 5000 rpm
Spindle Motor Power: 30 hp
Spindle Torque: 140 ft-lb @ 1450 rpm
Spindle Nose: A2-6
Spindle Bore Diameter: 3.50 in
Tool Capacity: 24 stations
Tool Layout: 12 BOT / 12 VDI hybrid turret
Boring Bar Rear Clearance: 4.0 in
Chip Conveyor: Included
Automatic Tool Presetter: Included
Spindle Orientation: Included
Parts Catcher: Included
Ethernet Interface: Included
High Pressure Coolant: 300 psi
Auxiliary Coolant Filter: Included
Coolant Tank Oil Skimmer: Included
High Intensity Lighting: Included
Air Required: 4 scfm @ 100 psi
Coolant Capacity: 55 gal
