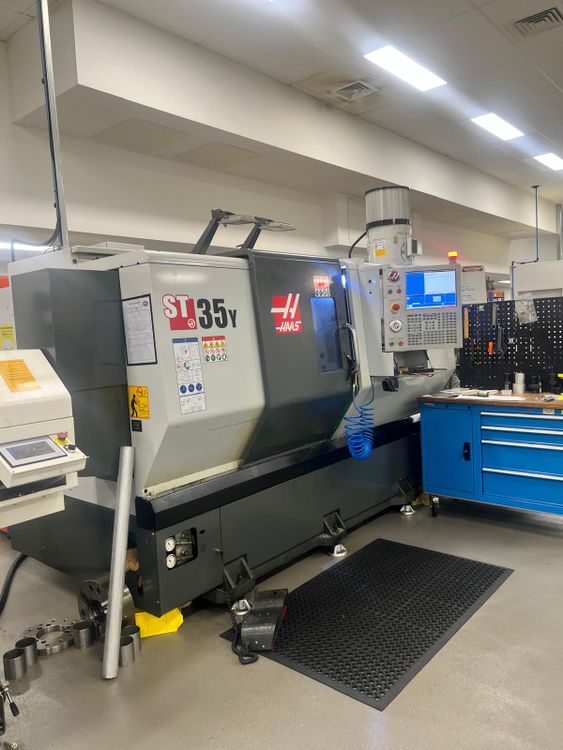

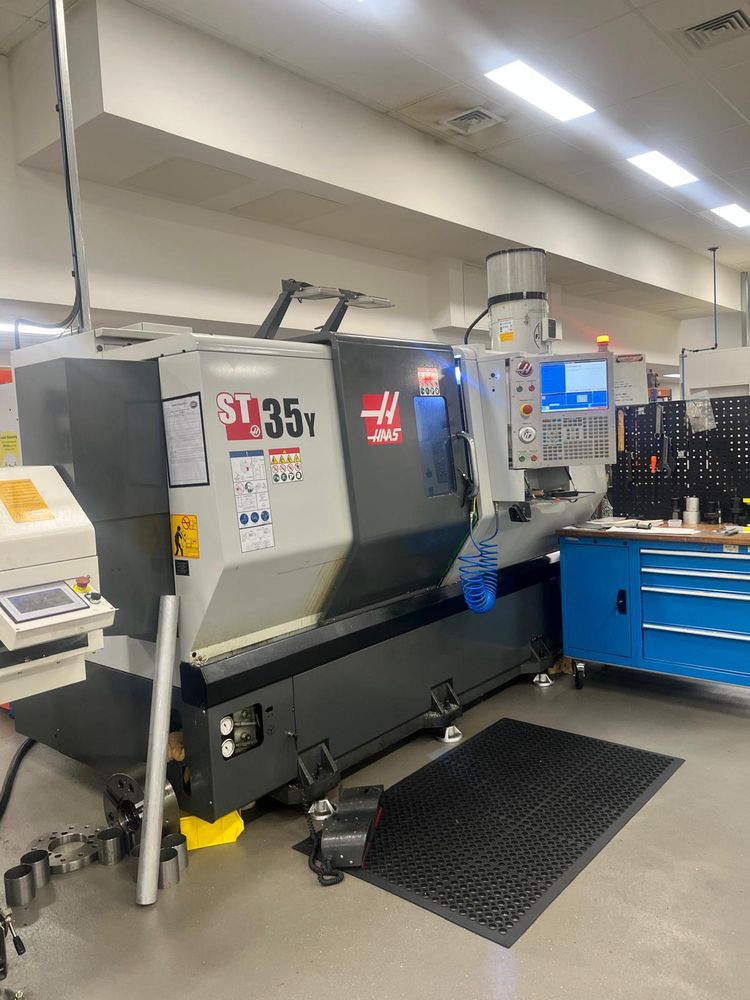

Haas HAAS 3200 rpm ST-35Y 4 Axis

Rapid Feedrates (X/Y/Z): 12 x 12 x 24 m/min
X Axis Travel: 239 mm
Y Axis Travel: ±51 mm
Z Axis Travel: 584 mm
C Axis: 0.01°
Control: HAAS
3 Jaw Chuck
C Axis & Milling
Collet Chuck
Coolant
Fume Extractor
Interlocked Guards
Low Volt Light
Magazine Barfeed
Swarf Conveyor
Tailstock
Tool Setter
Tooling
Y-Axis

Bar Capacity: 102 mm
Swing: 806 mm
Spindle Speed: 3200 rpm
Spindle Motor Power: 40 Hp
Spindle Nose: A2-8
Tailstock Taper: MT #4
Milling Motor Power: 5 Hp
Milling RPM: 4000 rpm
Chuck Size: 12" (300 mm)
Turret Positions: 12 Station
Maximum Cutting Diameter: 533 mm
Maximum Cutting Length: 584 mm
Distance Between Centres: 826 mm
Machine Dimensions: 3073 x 2007 x 2108 mm
Machine Weight: 6487 kg
