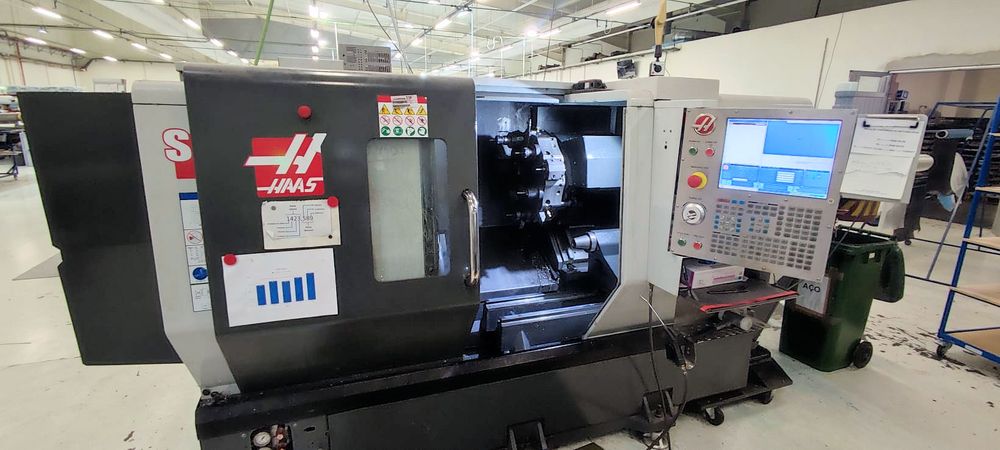

Haas HAAS 4000 RPM ST-20Y 2016 4 Axis

X axis travel: 236mm
Y axis travel: ±51mm
Z axis travel: 533mm
C axis: 0.01°

Control: HAAS
Bar capacity: 52mm

Swing: 806mm
Swing over the cross-slide: 527mm
Spindle speed: 4000 RPM
Spindle motor power: 14.9 kW
Spindle nose: A2-6

Rapid feedrates (X/Y/Z): 24 / 12.7 / 24 m/min
Chuck size: 210mm
Turret positions: 12 station
Tailstock body travel: 813mm

Maximum cutting diameter: 305mm
Maximum cutting length: 593mm
Machine dimensions: 4191 x 2515 x 1956mm
Machine weight: 4754 kg

3-jaw chuck
C axis and milling
Coolant system
Interlocked guards
Low voltage light
Swarf conveyor
Tailstock
Tool setter
Tooling
Y-axis
