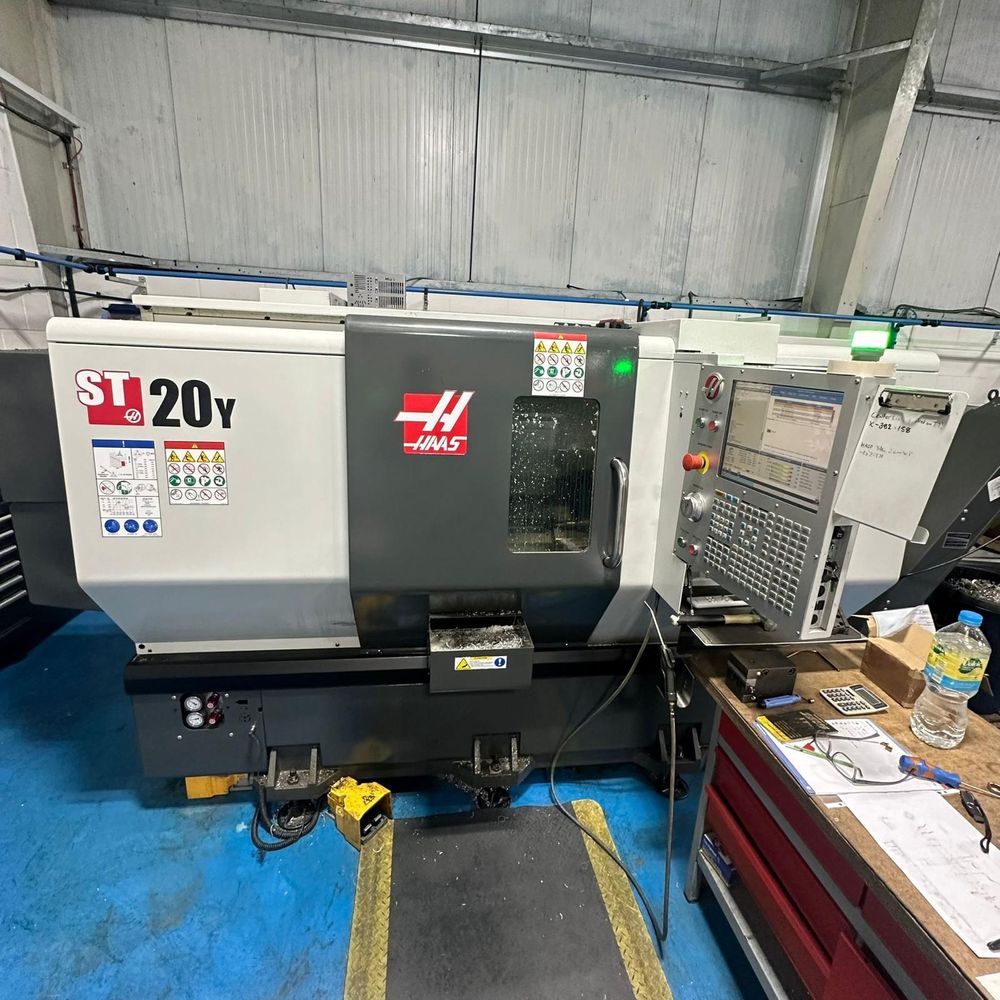

Haas HAAS 4000rpm ST-20Y 3 Axis

HAAS ST-20Y
2018

3 Jaw Chuck, C axis & Milling, Coolant, Interlocked guards
Low Volt Light, Parts Catcher, Swarf Conveyor
Tailstock, Tool setter, Tooling, Y-axis

Bar Capacity 63.5mm
C axis 0.01 degrees
Chuck Size 210MM
Control HAAS
Machine Dimensions 4191 x 2515 x 1956mm
Machine Weight 4754kg
Maximum Cutting Diameter 305mm
Maximum Cutting Length 593mm
Rapid Feedrates XYZ: 24 x 12.7x 24m/min
Spindle Motor Power 14.9kW
Spindle Nose A2-6
Spindle Speed 4000rpm
Swing 806mm
Swing over the Cross-slide 527mm
Tailstock Body Travel 813mm
Turret Positions 12 Station
X axis Travel 236mm
Y axis Travel +/-51mm
Z axis Travel 533mm
