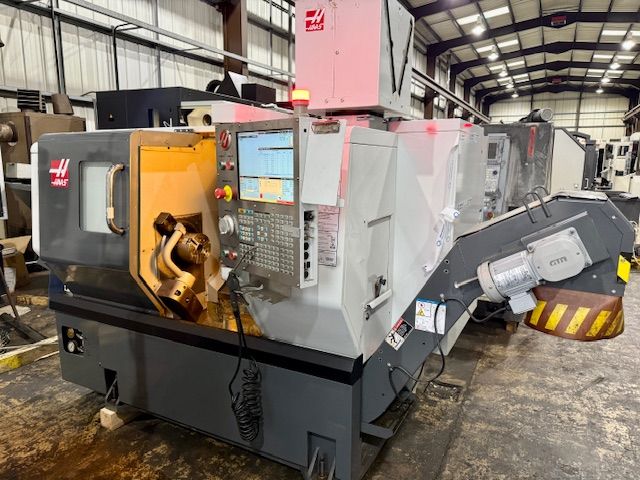

Haas HAAS 6000 rpm ST-10 3 Axis

X-axis travel: 200 mm
Z-axis travel: 356 mm
C-axis
Control: HAAS
Tool setter
Coolant system
USB port
Bar capacity: 44 mm
Swing: 641 mm
Swing over carriage: 413 mm
Maximum cutting diameter: 356 mm
Maximum cutting length: 356 mm
Spindle speed: 6000 rpm
Spindle motor power: 11.2 kW
Spindle nose: A2-5
Spindle bore: 58.7 mm
Milling motor power: 10 hp
Rapid feedrate: 30.5 m/min
Chuck size: 165 mm
Turret positions: 12 stations
Tooling configuration: VDI40
Machine length: 3048 mm
Machine width: 2108 mm
Machine height: 1803 mm
Machine weight: 3600 kg
3-jaw chuck
Swarf conveyor
Tailstock
Interlocked guards
Low voltage light
Manuals
