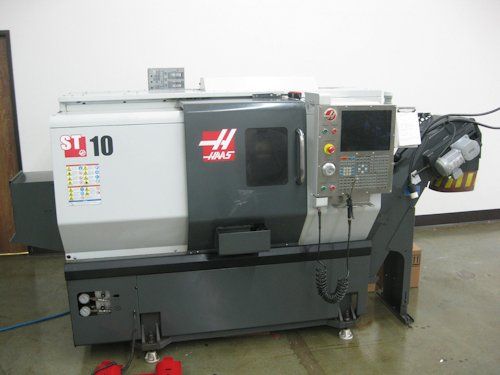

Haas HAAS 6000 RPM ST-10Y 2 Axis

HAAS ST-10Y
2011


MAX SWING OVER FRONT APRON.............. 25.25"
MAX SWING OVER CROSS SLIDE.............. 16.25"
CHUCK DIAMETER.......................... 6.5"
MAX CUTTING LENGTH...................... 14"
MAX CUTTING DIAMETER.................... 12"
MAX BAR CAPACITY........................ 1.75"
X-AXIS TRAVEL........................... 7.88"
Y-AXIS.................................. =/- 2"
Z-AXIS TRAVEL........................... 14"
RAPID TRAVERSE RATE ON X & AXES......... 472 IPM
RAPIDS ON Z-AXIS........................ 1200 IPM
SPINDLE NOSE............................ A2-5
SPINDLE SPEEDS.......................... 6000 RPM
TURRET CONFIGURATION.................... 12 TOOLS
MAIN MOTOR.............................. 15 HP AC VECTOR DRIVES

EQUIPPED WITH:

HAAS CNC CONTROLS
COLLET CHUCK
PROGRAMMABLE TAILSTOCK
PARTS CATCHER
MILLING
C-AXIS
TOOL PRESETTER
RIGID TAPPING
SPINDLE ORIENTATION
CHIP CONVEYOR
FLOPPY DRIVE
