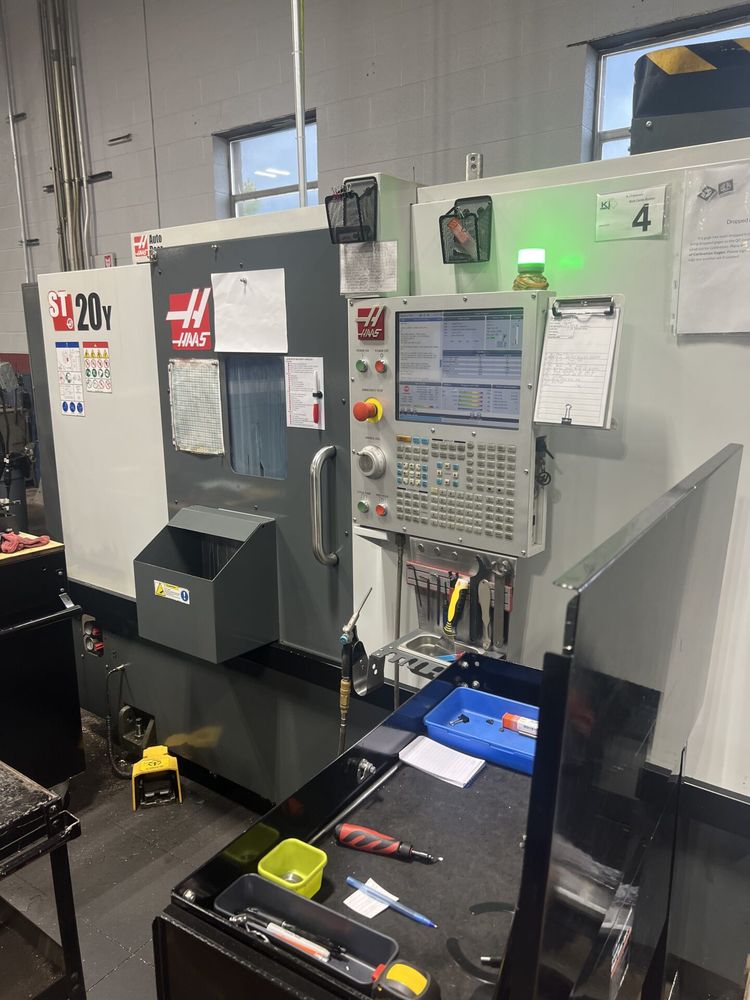

Haas HAAS CNC Control 4,000 RPM ST-20Y 2 Axis

15" Color TFT
USB Port
Ethernet Capability
C & Y-axis milling capability
6,000 RPM milling spindle upgrade
8" hydraulic chuck
Collet chuck
Fully programmable hydraulic tailstock
Auto parts catcher
High pressure coolant (300 PSI)
Automatic tool presetter
24 position turret
Spindle orientation
Rigid tapping
Chip conveyor (belt type right side exit)
OD live holder
Face live holder
Spindle liners

X-axis travel: 9.3"
Z-axis travel: 21"
Y-axis travel: ±2.0"
Bar capacity: 2.5"
Max swing over front apron: 31.75"
Max swing over cross slide: 20.75"
Max machining length: 21"
Max turning diameter: 12"
Spindle motor power: 20 hp
Spindle speed: 4,000 RPM
Spindle nose: A2-6
Spindle torque: 150 ft-lbs
Tailstock taper: MT#4
Milling speed: 6,000 RPM
Tool capacity: 24
Chuck size: 8"
Machine dimensions: 142" × 90" × 89"
Machine weight: 10,500 lbs
