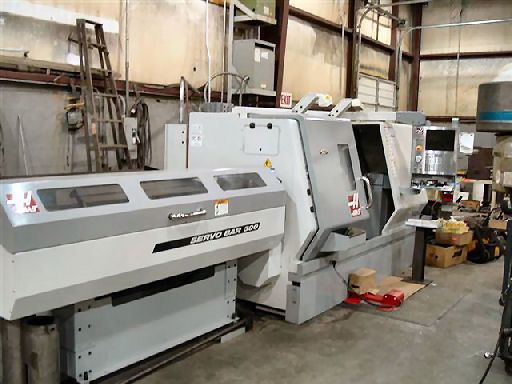

Haas HAAS CNC/CRT 3400 RPM SL-30 2 Axis

HAAS SL-30, HAAS CNC/CRT, 10"Chk, 3" BAR,TAILSTOCK
2007

HAAS CNC WITH CRT
SWING OVER THE FRONT APRON.............. 30"
SWING OVER THE CROSS-SLIDE.............. 14.5"
CHUCK SIZE.............................. 10"
MAX CUTTING DIAMETER.................... 17"
MAX CUTTING LENGTH...................... 34"
BAR CAPACITY............................ 3"
DISTANCE BETWEEN CENTERS................ 39"
X-AXIS TRAVEL........................... 11.30"
Z-AXIS TRAVEL........................... 34"
RAPID TRAVERSE RATE..................... 710 IPM
SPINDLE MOTOR........................... 30 HP
TURRET POSITIONS........................ 12
SPINDLE SPEEDS.......................... 3400 RPM

EQUIPPED WITH:

TOOL PRESETTER
CHIP CONVEYOR
HAAS SERVO BAR FEEDER MODEL 300
PROGRAMMABLE TAILSTOCK
HIGH INTENSITY LIGHTING
