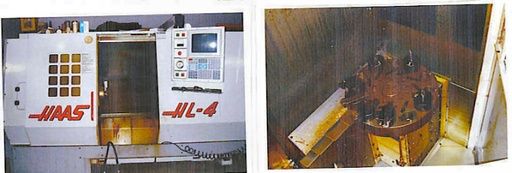

Haas HAAS CNC with CRT 3,500 RPM HAAS HL-4 2 Axis

HAAS HL-4
1997

Dimensions & Capacity:
Chuck Size: 10"
Swing Over Front Apron: 24"
Swing Over Cross Slide: 9.5"
Bar Capacity: 2.5"
Distance Between Centers: 39"
Max Cutting Diameter: 14.5"
Max Cutting Length: 34"
Machine Weight: 14,000 lbs

Travel & Axis:
X-Axis Travel: 11.3"
Z-Axis Travel: 34"
Rapid Traverse Rate (X/Z): 700 IPM

Spindle:
Max RPM: 3,500 RPM
Spindle Motor Power: 30 HP
Spindle Nose: A2-6

Tooling:
Turret Configuration: 12 Positions

Control & Features:
CNC Control: HAAS CNC with CRT
Chip Auger
3.5" Floppy Disk Drive
Tool Presetter
AC Servo Drives
Tailstock
