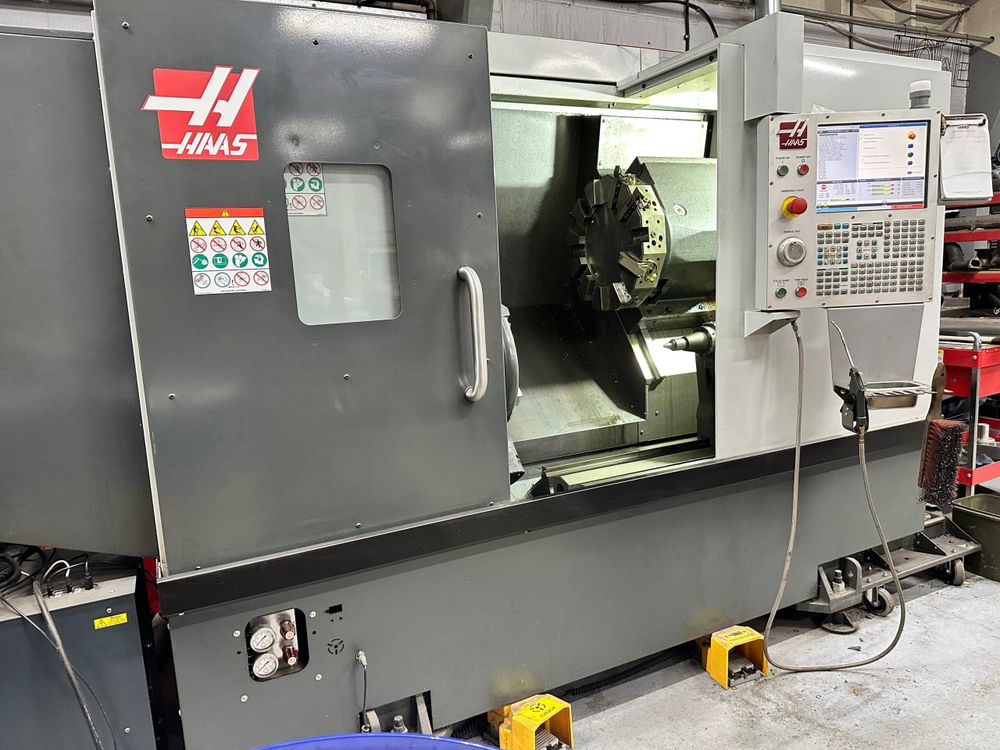

Haas Haas control 3500 rpm ST25 2 Axis

X-axis travel: 213 mm
Z-axis travel: 572 mm
Rapid traverse X-axis: 24.0 m/min
Rapid traverse Z-axis: 24.0 m/min
CNC control: Haas control
Bar capacity: 76 mm
Maximum part swing: 533 mm
Maximum cutting diameter: 330 mm
Maximum cutting length: 572 mm
Spindle speed: 3400 rpm
Spindle speed (max): 3500 rpm
Spindle power: 22.4 kW
Spindle nose: A26
Spindle bore: 88.9 mm
Maximum spindle torque: 407 Nm at 500 rpm
Chuck size: 254 mm
Turret stations: 12
Coolant tank capacity: 208 L
Machine length: 4130 mm
Machine width: 2300 mm
Machine height: 2360 mm
Machine weight: 4083 kg

Features / Equipment
Horizontal CNC turning lathe
Bolt-on tooling turret
Direct speed spindle drive
Belt drive spindle
Automatic door
Coolant system
Air connection system
Operating hours: 1896
