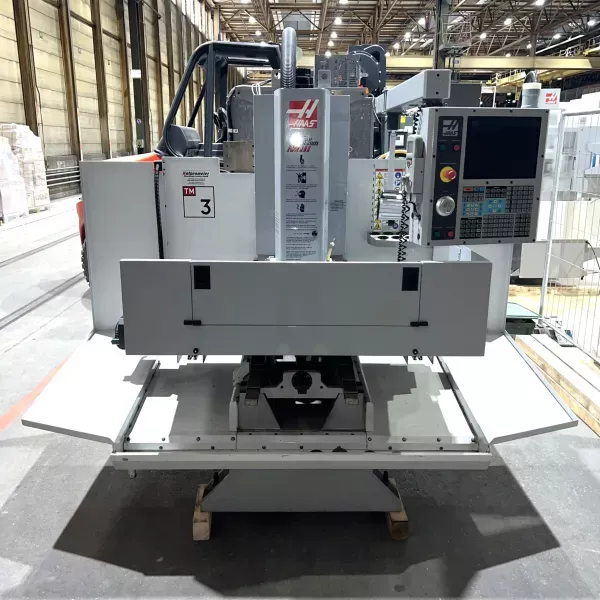

Haas TM-3 3 Axis

Travel X-Axis: 1016 mm
Travel Y-Axis: 508 mm
Travel Z-Axis: 406 mm
Distance Spindle Nose to Table (Min): 102 mm
Distance Spindle Nose to Table (Max): 508 mm
Table Length: 1467 mm
Table Width: 368 mm
T-Slots (Number): 3
T-Slot Width: 16 mm
T-Slot Spacing: 125 mm
Table Load Capacity: 454 kg
Spindle Power: 5.6 kW
Spindle Speed: 4000 RPM
Spindle Torque: 45 Nm at 1200 RPM
Spindle Taper: BT40
Rapid Traverse (X/Y/Z): 5.1 m/min
Machine Weight: 2245 kg
Control: Included
Handling Device: Included
Complete Operating Documentation: Included
