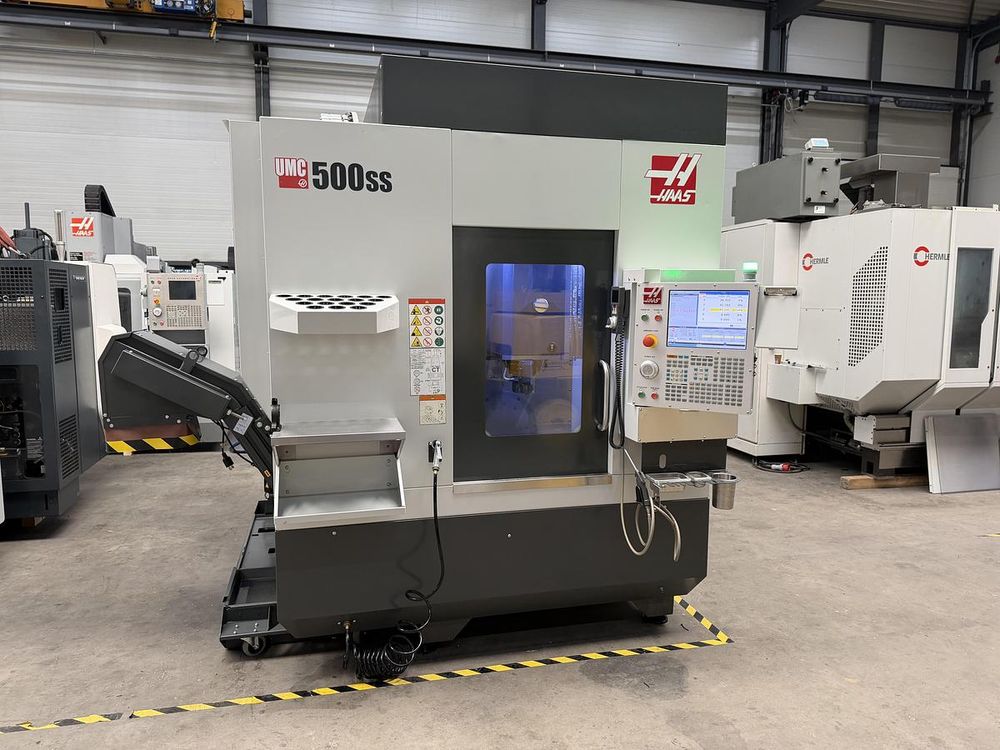

Haas UMC-500SS 5 Axis

X-axis travel: 610 mm
Y-axis travel: 406 mm
Z-axis travel: 406 mm
B-axis travel: -120° to +35°
C-axis travel: 360°
Rapid traverse X-Y-Z (B-C): 30.5 m/min
Control: HAAS CNC Control
High-speed machining option in control
Dynamic work offset and TCPC
Extra M-codes
Table size: Ø400 mm
Maximum table load: 230 kg
Spindle nose: BT40
Spindle speed: 0 – 15000 RPM
Spindle motor power: 22.4 kW
Air through spindle
Internal coolant: 30 bar
Programmable coolant nozzle
Tool magazine: 50 positions
Electronic handwheel
Chip conveyor
Air connection through table for pneumatic clamps
32 GB control memory expansion
Emulsion filter
Machine dimensions (L × W × H): 2965 × 2612 × 2616 mm
Weight: 5400 kg
