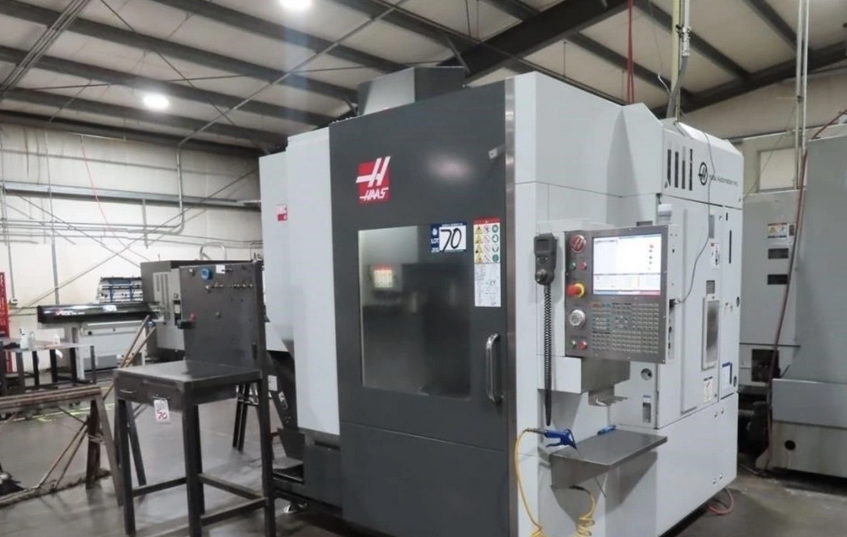

Haas UMC-750 – 5-Axis Vertical Machining Center 5 Axis

X / Y / Z travel: 30" × 20" × 20"
Spindle to nose platter: 24"
Part swing: 27"

Spindle speed: 12,000 RPM
Spindle motor: 30 HP
Torque: 90 ft-lbf @ 2,000 RPM
Spindle taper: CT40 / BT40 / HSK-A63

B-axis tilt: 120°
B-axis speed: 50°/sec
B-axis torque: 2,240 ft-lbf

C-axis rotation: 360°
C-axis speed: 50°/sec
C-axis torque: 1,854 ft-lbf

Platter diameter: 19.7"
Max platter load: 660 lbs
With pallet pool: 200 lbs

Cutting feed: 650 IPM
Rapid traverse X/Y/Z: 900 IPM

Tool changer: 30+1 (listing notes equipped with 40+1)
Max tool diameter: 2.5" / 5"
Max tool length: 12"
Max tool weight: 12 lbs

Machine size: 168" × 92.5" × 110"
Machine weight: 14,250 lbs

Equipped with:
High Speed Machining
Chip Conveyor
Through Spindle Coolant
Renishaw Probing
40+1 Tool Changer
