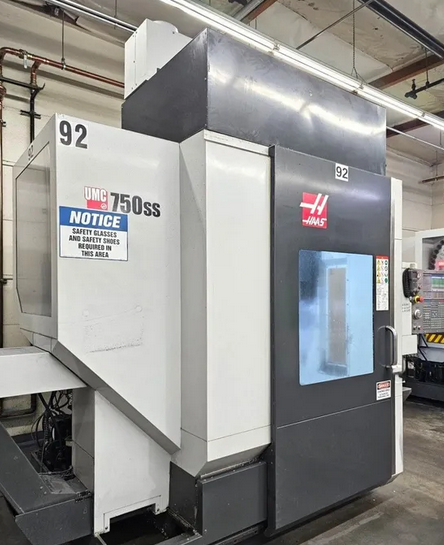

Haas UMC-750SS 5-Axis Vertical Machining Center

X-Axis Travel 30"
Y-Axis Travel 20"
Z-Axis Travel 20"
B-Axis Tilt/Travel +120/-35 Degrees
C-Axis Rotation 360 Degrees
Control HAAS CNC Control with Digital Hand Wheel
Spindle Taper CT 40
Spindle Nose to Table 4"-24"
Spindle Motor 30 HP
Spindle Speeds Up to 15,000 RPM
Table Diameter 19.7"
Table Work Weight Capacity 660 lbs
40-Position Automatic Tool Changer
Thru Spindle Coolant
Rigid Tapping
High Speed Machining VPS Editing
Renishaw Wireless System
Renishaw OTS Touch-Off Probe
Macros
Rotation and Scaling
Dynamic Work Offsets (DWO)
Tool Center Point Control (TCPC)
M19 Spindle Orientation
Compensation Tables
Chip Conveyor
Programmable Coolant Nozzle
300 PSI Thru Spindle Coolant
EC-E4 Belt-Type Chip Conveyor
RJH-C Remote Jog Handle with Color LCD
Ethernet Interface
HAAS Connect Option
Home - Second Home Position
Media Display - Media Display M-Code
WIPS-R-EC Renishaw Intuitive Probing
