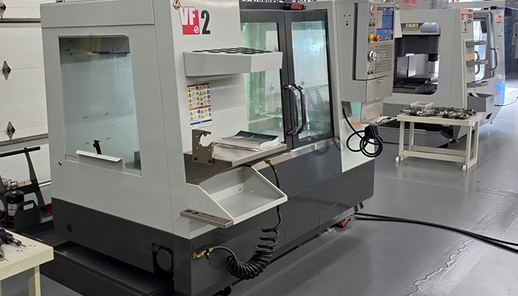

Haas VF-2 3 Axis

X-Axis Travel: 30"
Y-Axis Travel: 16"
Z-Axis Travel: 20"
Rapid Traverse X: 1,000 IPM
Rapid Traverse Y: 1,000 IPM
Rapid Traverse Z: 1,000 IPM
CNC Control: Haas CNC Control
Maincon Control
Programmable Coolant
Rigid Tapping
Table Size: 36" x 14"
Maximum Table Load: 3,000 lbs
Spindle Speed: 8,000 RPM
Spindle Motor: 20 HP
Spindle Taper: CT40
Tool Changer Capacity: 21 Tools
Side-Mount ATC
Maximum Torque: 90 ft-lbf
Maximum Tool Diameter: 3.5"
Maximum Tool Weight: 12 lbs
Tool-to-Tool Time: 4.2 sec
Chip-to-Chip Time: 4.5 sec
Maximum Thrust X: 2,550 lbf
Maximum Thrust Y: 2,550 lbf
Maximum Thrust Z: 4,200 lbf
CT40 Tool Holders Included
Machine Dimensions: 101" x 99" x 101"
Machine Weight: 7,800 lbs
Spindle Hours: 2,483
No Chip Conveyor
Vertical Machining Center
