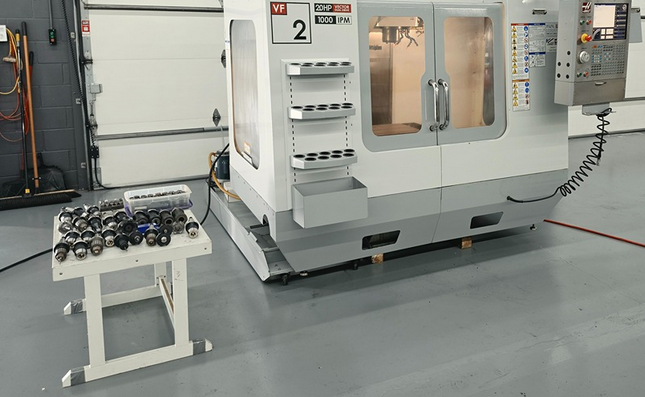

Haas VF-2D 3 Axis

X-Axis Travel: 30"
Y-Axis Travel: 16"
Z-Axis Travel: 20"
Rapid Traverse X: 1,000 IPM
Rapid Traverse Y: 1,000 IPM
Rapid Traverse Z: 1,000 IPM
CNC Control: Haas CNC Control with Coldfire Processor
Standard Coolant Pump & Tank
Coolant Float Sensor
P-Cool Coolant Nozzle
Rigid Tapping
Tool Storage Rack
Table Size: 36" x 14"
Maximum Table Load: 3,000 lbs
Spindle Speed: 7,500 RPM
Spindle Motor: 20 HP Vector Drive
Spindle Taper: CT40
Tool Changer Capacity: 21 Tools
Side-Mount ATC
Maximum Torque: 90 ft-lbf
Maximum Tool Diameter: 3.5"
Maximum Tool Weight: 12 lbs
Tool-to-Tool Time: 4.2 sec
Chip-to-Chip Time: 4.5 sec
Maximum Thrust X: 2,550 lbf
Maximum Thrust Y: 2,550 lbf
Maximum Thrust Z: 4,200 lbf
CT40 Tool Holders Included
Electrical: 208/230 V, 3 Phase
Machine Weight: 7,800 lbs
Cutting Time: 1,965 Hours
No Chip Conveyor
Vertical Machining Center
