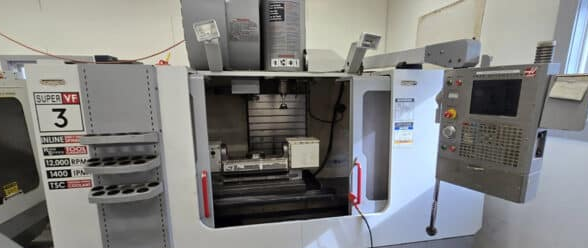

Haas VF-3SS (5-Axis) 5 Axis

Haas VF-3SS (5-Axis)
Year: 2005

Table Size: 48″ × 18″
Max Weight on Table: 1,750 lbs
X Axis Travel: 40″
Y Axis Travel: 20″
Z Axis Travel: 25″
Automatic Tool Changer: Side Mount, 24 ATC
Spindle Taper: CAT #40
Max Tool Diameter: 3.0″
Tool to Tool Time: 1.6 sec
Chip to Chip Time: 2.2 sec
Spindle Speed: 12,000 RPM
Spindle Motor: 30 HP
Drive System: Inline Direct Drive
Max Torque: 75 ft-lb @ 2,100 RPM
Feedrate Rapid (X, Y, Z): 1,400 IPM
Max Cutting Feedrate: 833 IPM

Dimensions & Weight
Machine Dimensions (L × W × H): 118″ × 110″ × 119.5″
Machine Weight: 12,500 lbs

Equipped With
Haas CNC Control
Haas TR-160 Tilting Rotary Table
Chip Auger
Through Spindle Coolant
