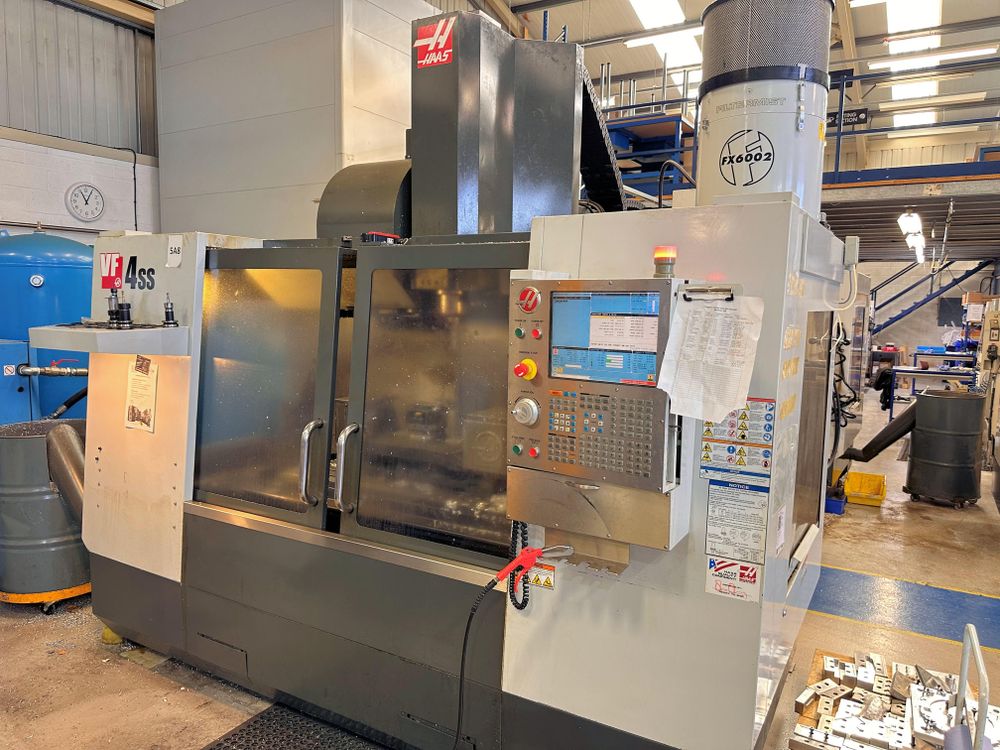

Haas VF-4SS 3 Axis

X-axis travel: 1270 mm
Y-axis travel: 508 mm
Z-axis travel: 635 mm
Rotary table: HAAS TR210 (5-axis unit)
Control: HAAS
Table size: 1324 × 457 mm
T-slots: 5 × 18 mm
Tool capacity: 24 stations
Tool size: BT40
Maximum tool diameter: 64 mm
Maximum tool diameter with empty adjacent pockets: 127 mm
Maximum tool length: 330 mm
Maximum tool weight: 5.4 kg
Spindle speed: 12,000 rpm
Spindle motor power: 40 hp
Rapid feedrate: 35.6 m/min
Height under spindle (min–max): 107–742 mm
Maximum workpiece weight: 794 kg
Memory: 1 GB
Tool change time (chip to chip): 2.4 s
Machine dimensions: 3629 × 2794 × 2985 mm
Machine weight: 6033 kg

Features
5-axis table
Coolant
Interlocked guards
Low volt light
Programmable coolant nozzle
Remote hand wheel
Swarf auger
USB port
